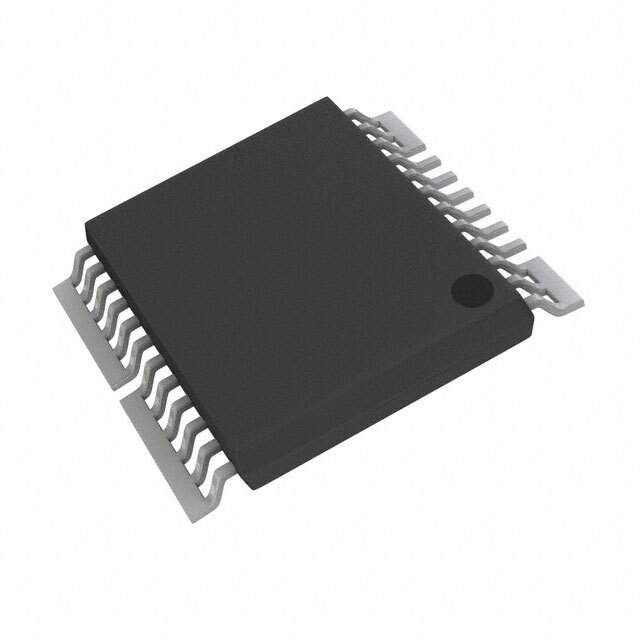

CQ3203 Real Image
Same model may have multiple batches, images only for reference.

CQ3203

Part No CQ3203
Manufacturer Asahi Kasei Microsystems
Catalog Current Transducers
Description CORELESS CURENT SENSOR / 20A W/S / Current Sensor 35.7A 1 Channel Hall Effect, Open Loop Bidirectional 24-LSSOP (0.220", 5.60mm Width), 10 Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Current Sensors
Mfr Asahi Kasei Microdevices/AKM
Package Tape & Reel
Product Status Obsolete
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 35.7A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 37mV/A
Accuracy ±1.3%
Voltage - Supply 3.3V
Response Time 0.5µs
Current - Supply (Max) 6.2mA
Temperature Range - Operating -40°C ~ 90°C
Polarization Bidirectional
Mounting Type Surface Mount
Package / Case 24-LSSOP (0.220", 5.60mm Width) , 10 Leads
Supplier Device Package 24-VSOP
Standard Package 1,000
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1349115-CQ3203
Ultra Librarian 3D Model Ultra Librarian CQ3203 CAD Model

Description

The CQ3203 is a current sensor manufactured by Asahi Kasei Microdevices/AKM.

  • Sensor Type: Hall Effect, Open-Loop
  • AC/DC Current Sensing: Yes
  • Sensitivity: 37mV/A
  • Current Sensing: 35.7A
  • Accuracy: ±1.3%
  • Polarization: Bidirectional
  • Response Time: 0.5μs
  • Output: Ratiometric, Voltage
  • Package Type: 24-LSSOP (0.220", 5.60mm Width), 10 Leads
  • Mounting Type: Surface Mount
  • Voltage Supply: 3.3V
  • Operating Temperature: -40°C to 90°C
  • Status: Obsolete
  • ECCN: EAR99
  • Package: Tape & Reel
  • Standard Package: 1000
  • HTSUS: 8542.39.0001
  • MSL Level: 2A (4 Weeks)
