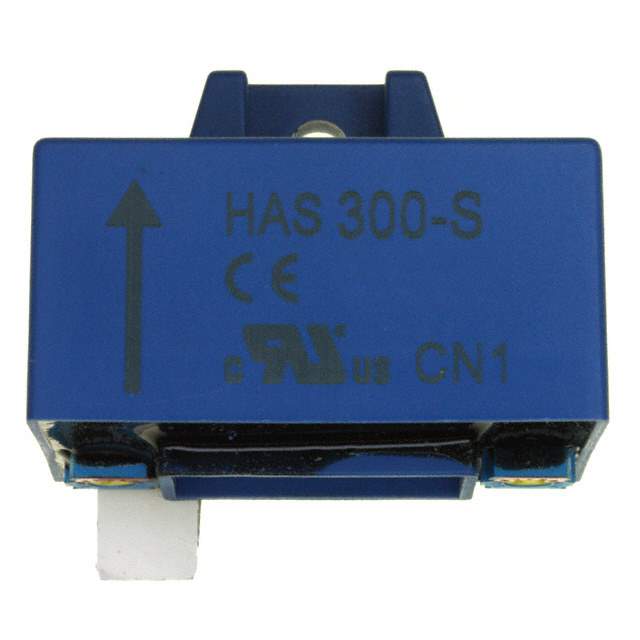

The HAS300-S is a current transducer manufactured by LEM. It's designed for accurate and reliable measurement of AC, DC, and pulsed currents in various industrial and automotive applications. These transducers utilize closed-loop Hall effect technology to provide galvanic isolation between the primary conductor and the measurement circuit.

Applications:

• AC variable speed drives
• Servo motor drives
• Static converters for DC motor drives
• Battery supplied applications
• Uninterruptible Power Supplies (UPS)
• Switched Mode Power Supplies (SMPS)
• Welding applications

Features:

• Closed-loop Hall effect technology
• Galvanic isolation between primary and secondary circuits
• Excellent linearity and accuracy
• Low temperature drift
• Fast response time
• Compact design
• Easy to mount

Benefits:

• Provides precise current measurement
• Enhances system safety through galvanic isolation
• Reduces energy consumption through efficient monitoring
• Improves control system performance
• Simplifies system design
• Increases system reliability

Additional Details:

The HAS300-S typically measures currents up to 300A. It operates on a single power supply, usually +5V or ±12V to ±15V, depending on the specific model. The output is a current proportional to the measured current. Key specifications include accuracy (typically less than 1%), linearity (typically less than 0.1%), and a response time of a few microseconds. The operating temperature range is generally from -40°C to +85°C. These transducers are designed to meet stringent industrial standards for safety and EMC.
