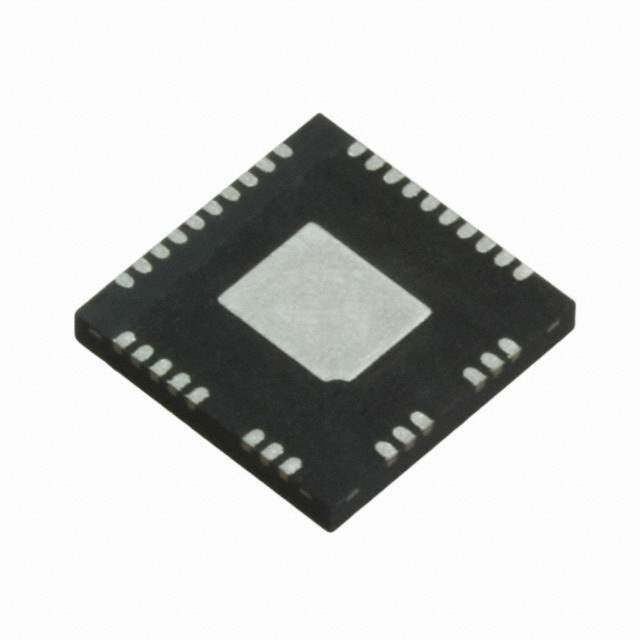

IRS2336DMTRPBF Real Image
Same model may have multiple batches, images only for reference.

IRS2336DMTRPBF

Part No IRS2336DMTRPBF
Manufacturer Infineon Technologies
Catalog PMIC - Gate Drivers
Description IC GATE DRIVER HV 3PHASE 48-MLPQ
Datasheet
IRS2336DMTRPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Driven Configuration Half-Bridge
Channel Type 3-Phase
Number of Drivers 6
Gate Type IGBT, N-Channel MOSFET
Supply Voltage - Operating 10 V to 20 V
Logic Voltage - VIL, VIH 0.8V, 2.5V
Current - Peak Output (Source, Sink) 200mA, 350mA
Input Type Inverting
High Side Voltage - Max (Bootstrap) 600V
Rise and Fall Time 125ns, 50ns
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 48-MLPQ, 34 Leads (7x7)
Win Source Part Number 1047811-IRS2336DMTRPBF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian IRS2336DMTRPBF CAD Model

Description

The electronic component from Infineon Technologies with Id 463759 is an active product with medium popularity.

  • Product Status: Active
  • Popularity: Medium
  • Case/Package: 48-MLPQ, 34 Leads (7x7)
  • Supply Voltage: 10V to 20V
  • Channel Type: 3-Phase
  • Input Type: Inverting
  • Driven Configuration: Half-Bridge
  • Number of Drivers: 6
  • Gate Type: IGBT, N-Channel MOSFET
  • Logic Voltage: 0.8V, 2.5V
  • Current Peak Output (Source): 200mA
  • Current Peak Output (Sink): 350mA
  • High Side Voltage (Max): 600V
  • Rise Time: 125ns
  • Fall Time: 50ns
  • Operating Temperature: -40°C to 150°C (TJ)
