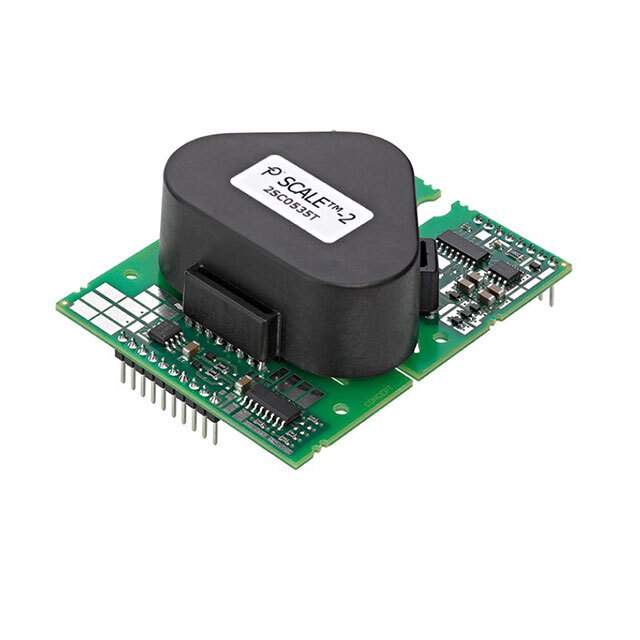

2SC0535T2G0-33 Real Image
Same model may have multiple batches, images only for reference.

2SC0535T2G0-33

Part No 2SC0535T2G0-33
Manufacturer Power Integrations
Catalog PMIC - Gate Drivers
Description IC GATE DRVR HI/LOW SIDE MODULE / High-Side or Low-Side Gate Driver IC Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Gate Drivers
Mfr Power Integrations
Series SCALE™-2
Package Box
Driven Configuration High-Side or Low-Side
Channel Type Independent
Number of Drivers 2
Gate Type IGBT
Voltage - Supply 14.5V ~ 15.5V
Current - Peak Output (Source, Sink) 35A, 35A
High Side Voltage - Max (Bootstrap) 3300 V
Rise / Fall Time (Typ) 20ns, 25ns
Temperature Range - Operating -55°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case Module
Supplier Device Package Module
Base Product Number 2SC0535
Standard Package 12
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1345629-2SC0535T2G0-33
Ultra Librarian 3D Model Ultra Librarian 2SC0535T2G0-33 CAD Model

Description

The Power Integrations SCALE™-2 gate driver is a powerful and versatile driver for use in a variety of applications.

  • Number of Channels: 2
  • Driver Configuration: High-Side or Low-Side Driven
  • Gate Type: IGBT
  • Voltage Supply: 14.5V to 15.5V
  • Peak Output Current: 35A
  • Rise/Fall Time (Typ): 20ns / 25ns
  • Temperature Range: -55°C to 85°C
  • Mounting Style: Surface Mount
  • Package: Module
  • RoHS: RoHS Compliant
