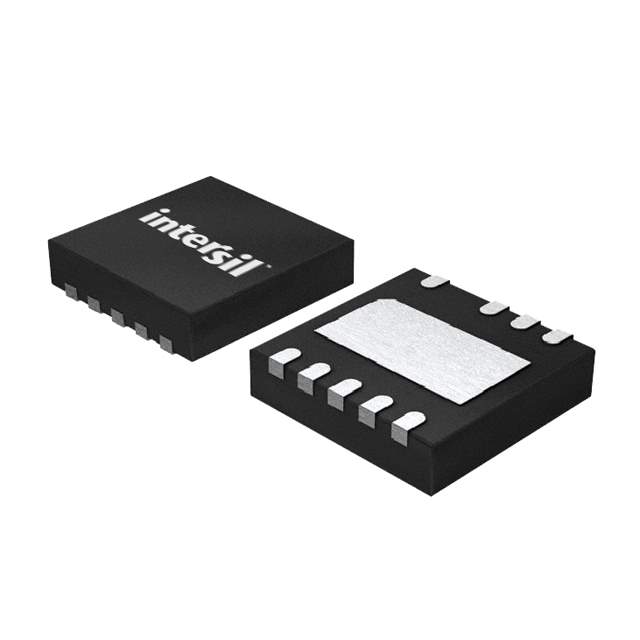

ISL89401AR3Z

Name: ISL89401AR3Z
Brand: Renesas Electronics America
SKU: 985785
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ISL89401AR3Z
Manufacturer	Renesas Electronics America
Catalog	PMIC - Gate Drivers
Description	IC GATE DRVR HALF-BRIDGE 9DFN / Half-Bridge Gate Driver IC Non-Inverting 9-DFN-EP (3x3)
Datasheet	ISL89401AR3Z Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs)>PMIC - Gate Drivers
Mfr	Renesas Electronics America Inc
Package	Tube
Product Status	Obsolete
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	N-Channel MOSFET
Voltage - Supply	9V ~ 14V
Logic Voltage - VIL, VIH	1.4V, 2.2V
Current - Peak Output (Source, Sink)	1.25A, 1.25A
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	100 V
Rise / Fall Time (Typ)	16ns, 16ns
Temperature Range - Operating	-40°C ~ 125°C (TJ)
Mounting	SMD (SMT)
Package / Case	9-VFDFN Exposed Pad
Supplier Device Package	9-DFN-EP (3x3)
Base Product Number	ISL89401
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Other Names	-ISL89401AR3Z
Standard Package	1,000
Win Source Part Number	985785-ISL89401AR3Z
Ultra Librarian 3D Model	Ultra Librarian ISL89401AR3Z CAD Model

Description

The ISL89401AR3Z is an integrated circuit designed for use in PMIC - Gate Drivers. The device comes with a package of Tube and has a standard package of 1,000.

Category: PMIC - Gate Drivers
Package: Tube
Standard Package: 1,000
Channel Type: Independent
Input Type: Non-Inverting
Driven Configuration: Half-Bridge
Number of Drivers: 2
Gate Type: N-Channel MOSFET
Logic Voltage - VIL, VIH: 1.4V, 2.2V
Current - Peak Output (Source, Sink): 1.25A, 1.25A
High Side Voltage - Max (Bootstrap): 100 V
Rise / Fall Time (Typ): 16ns, 16ns
Temperature Range: -40℃ ~ 125℃ (TJ)
ECCN: EAR99
