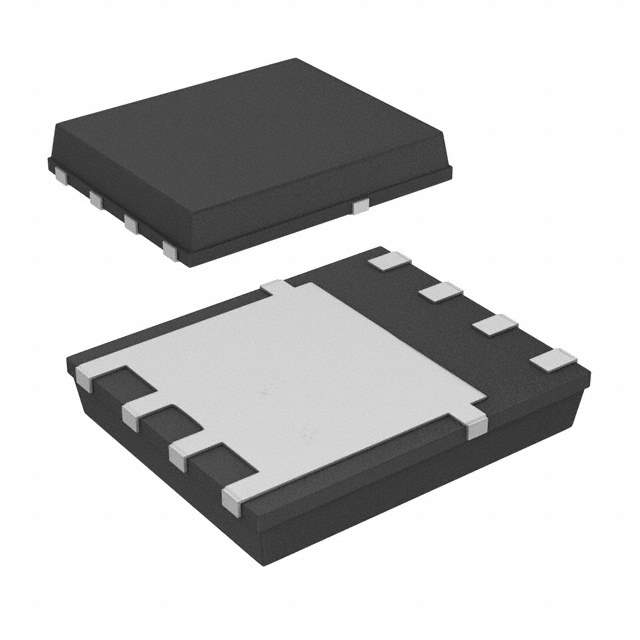

IRFH5204TR2PBF

Name: IRFH5204TR2PBF
Brand: Infineon Technologies
SKU: 813384
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IRFH5204TR2PBF
Manufacturer	Infineon Technologies
Catalog	FETs - Single
Description	MOSFET N-CH 40V 22A PQFN / Secondary Side Synchronous Rectification, Inverters for DC Motors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Infineon Technologies
Packaging	Cut Tape (CT)
Part Status	Obsolete (End Of Life)
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) at 25°C	22A , 100A (Tc)
Rds On (Maximum) at Id, Vgs	4.3mOhm at 50A, 10V
Vgs(th) (Maximum) at Id	4V at 100μA
Gate Charge (Qg) (Maximum) at Vgs	65nC at 10V
Input Capacitance (Ciss) (Maximum) at Vds	2460pF at 25V
Mounting Style	SMD
Supplier Device Package	PQFN (5x6)
Manufacturer Package	8-VQFN Exposed Pad
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Popularity	Low
Supply and Demand Status	Limited
Win Source Part Number	813387-IRFH5204TR2PBF
Ultra Librarian 3D Model	Ultra Librarian IRFH5204TR2PBF CAD Model

Description

The Infineon Technologies IRFH5204TR2PBF is an N-channel MOSFET that comes in a PQFN (5x6) package.

Maximum Continuous Drain Current: 22A @ 25°C
Gate Charge: 65nC @ 10V
Input Capacitance: 2460pF @ 25V
Drain to Source Voltage (Vdss): 40V
