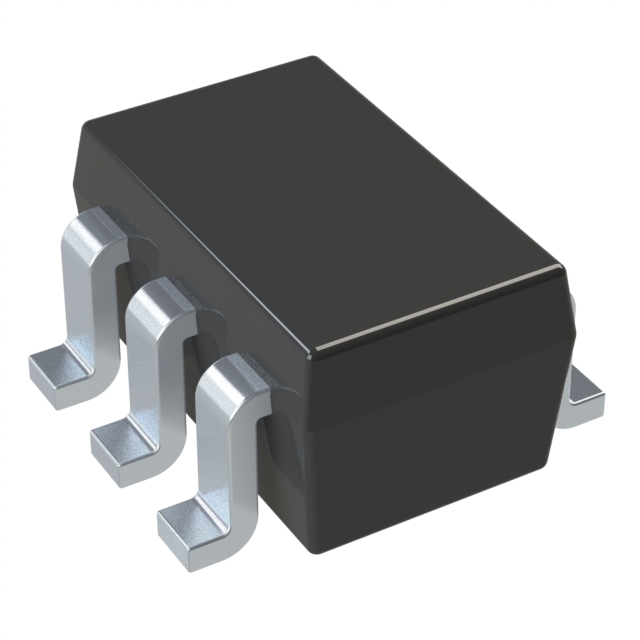

Same model may have multiple batches, images only for reference.
DMP1055USW-13 Diodes Incorporated – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

DMP1055USW-13

Part No DMP1055USW-13
Manufacturer Diodes Incorporated
Catalog FETs - Single
Description MOSFET P-CH 12V 3.8A SOT363
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor ProductsTransistorsFETs, MOSFETsSingle FETs, MOSFETs
Mfr Diodes Incorporated
Packaging Tape & Reel (TR)
Part Status Active
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 12 V
Current - Continuous Drain (Id) @ 25°C 3.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.5V, 4.5V
Rds On (Max) @ Id, Vgs 48mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id 1V @ 250μA
Gate Charge (Qg) (Max) @ Vgs 13 nC @ 4.5 V
Vgs (Max) ±8V
Input Capacitance (Ciss) (Max) @ Vds 1028 pF @ 6 V
Power Dissipation (Max) 660mW
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package SOT-363
Package / Case 6-TSSOP, SC-88, SOT-363
Base Product Number DMP1055
Ultra Librarian 3D Model Ultra Librarian DMP1055USW-13 CAD Model
