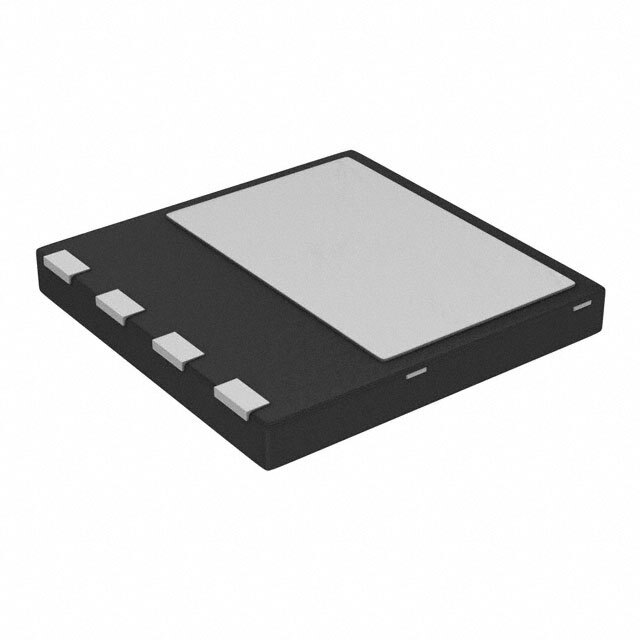

IPL60R075CFD7AUMA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

IPL60R075CFD7AUMA1

Part No IPL60R075CFD7AUMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 650V 33A 4VSON / N-Channel 650 V 33A (Tc) 189W (Tc) Surface Mount PG-VSON-4
Datasheet
IPL60R075CFD7AUMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Infineon Technologies
Series CoolMOS™ CFD7
Package Tape & Reel
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 650 V
Current - Continuous Drain (Id) @ 25°C 33A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 75mOhm @ 15.1A, 10V
Vgs(th) (Max) @ Id 4.5V @ 760µA
Gate Charge (Qg) (Max) @ Vgs 67 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 2721 pF @ 400 V
Power Dissipation (Max) 189W (Tc)
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting SMD (SMT)
Supplier Device Package PG-VSON-4
Package / Case 4-PowerTSFN
Base Product Number IPL60R075
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names IPL60R075CFD7AUMA1TR,SP001617972,IPL60R075CFD7AUMA1DKR,IPL60R075CFD7,IPL60R075CFD7AUMA1CT,IPL60R075CFD7AUMA1-ND
Standard Package 3,000
Win Source Part Number 1006201-IPL60R075CFD7AUMA1
Ultra Librarian 3D Model Ultra Librarian IPL60R075CFD7AUMA1 CAD Model

Description

The IPL60R075CFD7AUMA1 is a N-channel MOSFET with a drain to source voltage of 650V and a continuous drain current of 33A.

  • Channel Type: N-channel
  • Drain to Source Voltage: 650V
  • Continuous Drain Current: 33A
  • Series: CoolMOS™ CFD7
  • Package: 4-PowerTSFN
  • Maximum Gate-Source Voltage: ±20V
  • Gate Charge: 67nC @ 10V
  • Input Capacitance: 2721pF @ 400V
  • Maximum Power Dissipation: 189W @ 150°C
  • Applications: Power factor correction, resonant mode power supplies, and DC-DC converters
  • Manufacturer: Infineon Technologies
  • Packaging: Tape and Reel
