BAT165 Infineon Technologies
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 750mA (DC)
Voltage - Forward (Vf) (Max) @ If 740mV @ 750mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 50μA @ 40V
Capacitance @ Vr, F 12pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package PG-SOD323-2
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 095514-BAT165
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BAT165 CAD Model

Description

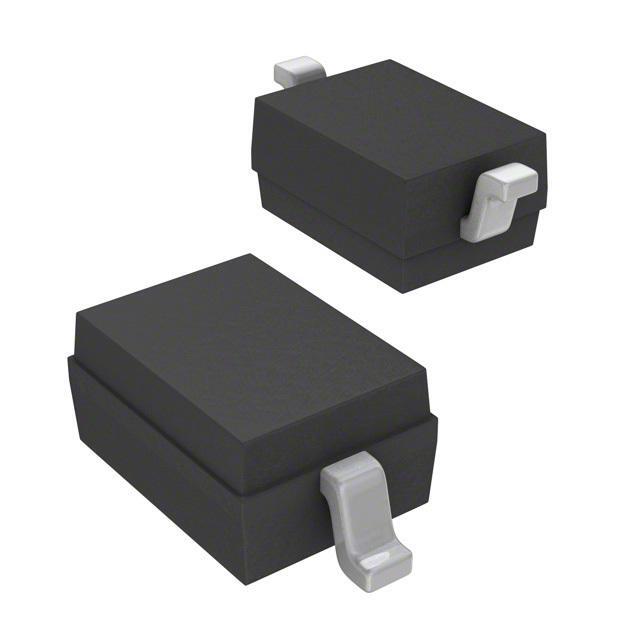

BAT165 Schottky Diode

The BAT165 is a general-purpose Schottky diode known for its low forward voltage drop and fast switching capabilities. It is ideal for applications requiring efficient rectification and low power loss.

  • Applications/Projects:
    • Switching power supplies
    • Battery-powered devices
    • High-speed logic circuits
  • Features and Benefits:
    • Low forward voltage drop
    • High-frequency operation
    • Compact surface-mount package
  • Additional Details: The BAT165 is designed for easy integration into high-density PCBs, providing reliable performance in compact electronic designs.
