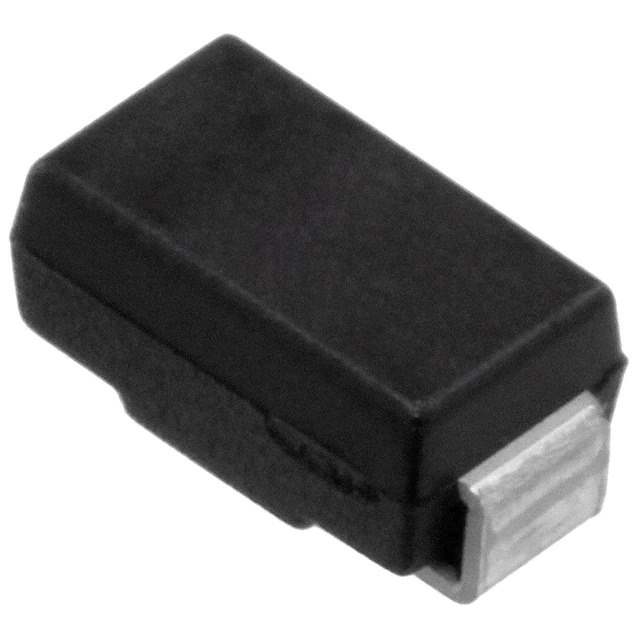

SJPX-F2 Real Image
Same model may have multiple batches, images only for reference.

SJPX-F2

Part No SJPX-F2
Manufacturer Sanken
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 200V 1.5A SJP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Sanken
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) 1.5A
Voltage - Forward (Vf) (Max) @ If 980 mV @ 1.5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 30 ns
Current - Reverse Leakage @ Vr 10 µA @ 200 V
Mounting Type Surface Mount
Package / Case 2-SMD, J-Lead
Supplier Device Package SJP
Operating Temperature - Junction -40°C ~ 150°C
Standard Package 1,800 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 667372-SJPX-F2
Ultra Librarian 3D Model Ultra Librarian SJPX-F2 CAD Model

Description

The SJPX-F2 is a fast recovery diode used in rectifier applications.

  • Category: discrete semiconductor products
  • Configuration: single diode configurations
  • Maximum reverse voltage: 200V
  • Average rectified current: 1.5A
  • Forward voltage drop: 980mV @ 1.5A
  • Reverse recovery time: 30ns
  • Mounting: surface mountable
  • Package: 2-SMD, J-Lead package
  • Status: active product
  • Temperature range: -40°C to 150°C
  • Versatility: a reliable and versatile component for various electronic circuits and systems
