Same model may have multiple batches, images only for reference.

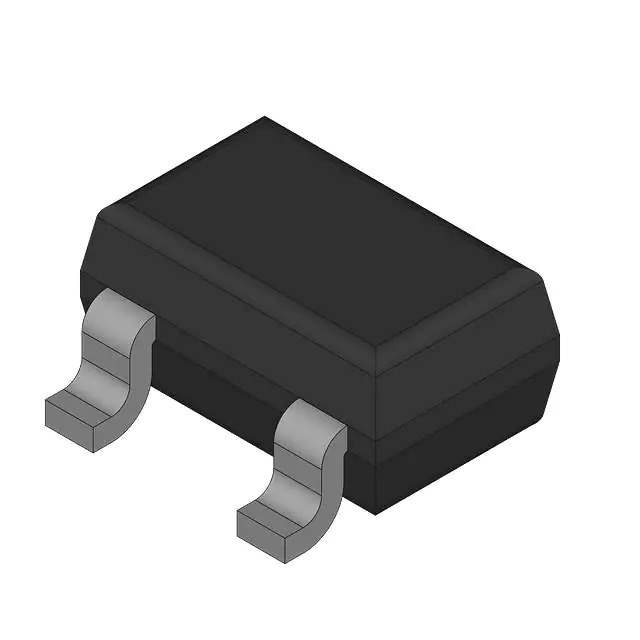

BAS70-06WH6327 Real Image
Same model may have multiple batches, images only for reference.

BAS70-06WH6327

Part No BAS70-06WH6327
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Arrays
Description SCHOTTKY DIODE
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Infineon Technologies
Package Bulk
Product Status Active
Diode Configuration 1 Pair Common Anode
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 70 V
Current - Average Rectified (Io) (per Diode) 70mA (DC)
Voltage - Forward (Vf) (Max) @ If 1 V @ 15 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 100 ps
Current - Reverse Leakage @ Vr 100 nA @ 50 V
Operating Temperature - Junction 150°C
Mounting Type Surface Mount
Package / Case SC-70, SOT-323
Supplier Device Package PG-SOT323-3
Base Product Number BAS70
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 845941-BAS70-06WH6327
Ultra Librarian 3D Model Ultra Librarian BAS70-06WH6327 CAD Model

Description

The 845941-BAS70-06WH6327 is a Schottky diode array designed for rectification in small signal applications from Infineon Technologies.

  • Reverse Voltage: 70V
  • Forward Voltage: 1V @ 15mA
  • Reverse Recovery Time: 100ps
  • Configuration: Common Anode Diode Pair
  • Average Rectified Current: 70mA per diode
  • Junction Temperature: 150°C
  • Mounting Type: Surface Mount
  • Package: SC-70, SOT-323
  • Product Status: Active
