Same model may have multiple batches, images only for reference.

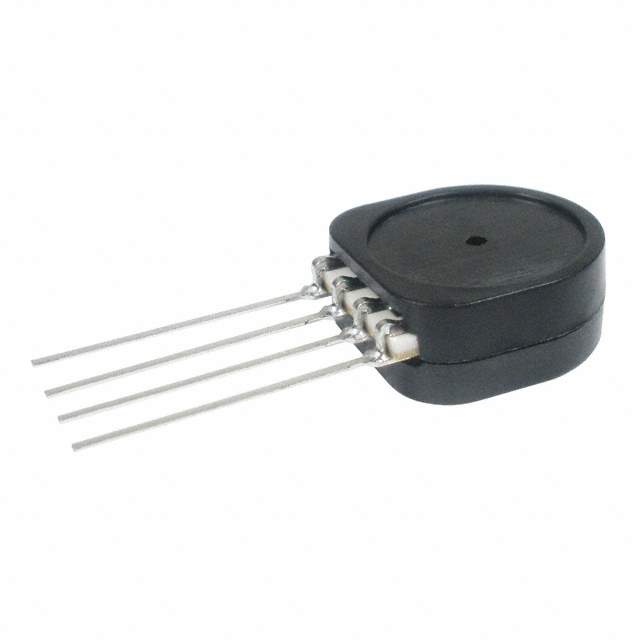

SSCSSND005NGAA5 Real Image
Same model may have multiple batches, images only for reference.

SSCSSND005NGAA5

Part No SSCSSND005NGAA5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRESS GAUGE 5" H2O 4SIP / Pressure Sensor 0.18PSI (1.25kPa) Vented Gauge 0.5 V ~ 4.5 V 4-SIP Module
Datasheet
SSCSSND005NGAA5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 0.18PSI (1.25kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±0.25%
Voltage - Supply 4.95V ~ 5.05V
Port Style No Port
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 9.76PSI (67.28kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP Module
Supplier Device Package 4-SIP
Base Product Number SSCSSND
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234523-SSCSSND005NGAA5
Ultra Librarian 3D Model Ultra Librarian SSCSSND005NGAA5 CAD Model

Description

The Honeywell TruStability SSC pressure sensor is perfect for a variety of applications.

  • Pressure Type: Vented Gauge
  • Output: Amplified
  • Temperature Compensation: Yes
  • Port Design: Portless
  • Termination Style: PC Pin
  • Output Voltage: 0.5V to 4.5V
  • Accuracy: ±0.25%
  • Operating Temperature: -40°C to 85°C
  • Maximum Pressure: 9.76PSI
  • Manufacturer: Honeywell Sensing and Productivity Solutions
  • Base Product Number: SSCSSND
