Same model may have multiple batches, images only for reference.

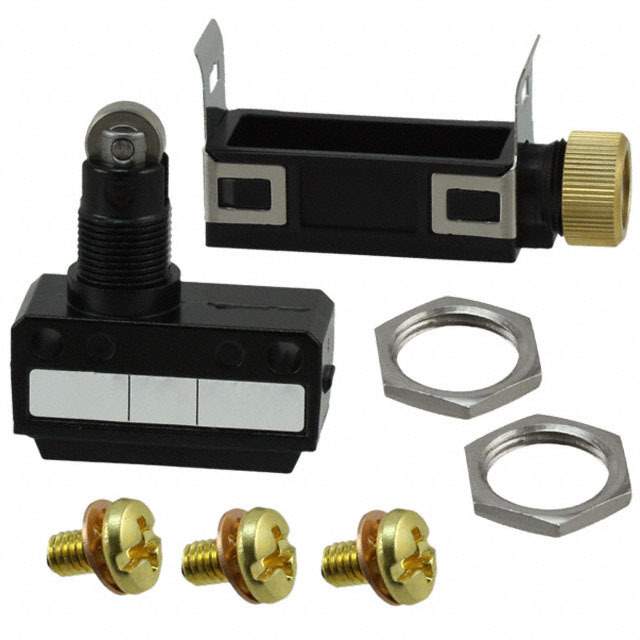

SL1-AK Real Image
Same model may have multiple batches, images only for reference.

SL1-AK

Part No SL1-AK
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V / Switch SPDT Panel Mount
Datasheet
SL1-AK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series SL1
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Roller Plunger
Mounting Type Panel Mount
Termination Style Screw Terminal
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 1200gf
Release Force 500gf
Pretravel 0.060" (1.5mm)
Differential Travel 0.004" (0.1mm)
Overtravel 0.118" (3.0mm)
Temperature Range - Operating -10°C ~ 70°C
Operating Position 1.235" (31.4mm)
Base Product Number SL1
Other Names 480-5180,SL1AK,SL1-AK
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9055
Win Source Part Number 1233664-SL1-AK
Ultra Librarian 3D Model Ultra Librarian SL1-AK CAD Model

Description

The Honeywell SL1 Series Limit Switch is a SPDT switch with a roller plunger actuator type.

  • Circuit: SPDT
  • Actuator Type: Roller Plunger
  • Termination Style: Screw Terminal
  • Mounting Type: Panel Mount
  • Ingress Protection: IP67 (Dust Tight and Waterproof)
  • Voltage Rating: 125V AC, 30V DC
  • Current Rating: 100mA
  • Operating Force: 1200gf
  • Release Force: 500gf
  • Pretravel: 0.060”
  • Overtravel: 0.118”
  • Differential Travel: 0.004”
  • Operating Position: 1.235”
  • Temperature Range: -10°C to 70°C
