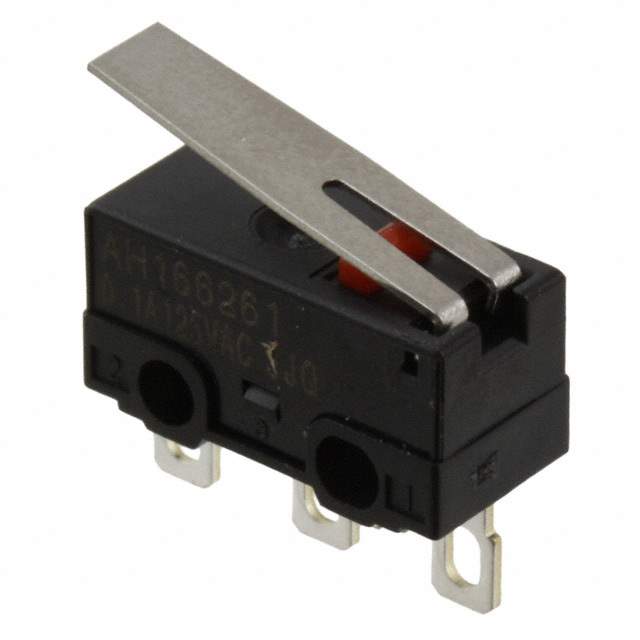

AH168261-A

Part No AH168261-A
Manufacturer Panasonic
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating 100mA (AC/DC)
Voltage Rating - AC 125V
Voltage Rating - DC 30V
Actuator Type Lever, Straight
Mounting Chassis Mount
Termination Style Solder Lug
Operating Force, Torque 25gf
Release Force 2.5gf
Pretravel 0.083" (2.1mm)
Differential Travel 0.020" (0.5mm)
Overtravel 0.022" (0.55mm)
Operating Position 0.268" (6.8mm)
Mechanical Life 1,000,000 Cycles
Electrical Life 100,000 Cycles
Temperature Range - Operating -25°C to 85°C
Win Source Part Number 077967-AH168261-A
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AH168261-A CAD Model

Description

Description

The AH168261-A is a versatile electronic component designed for seamless integration into various applications. Its compact design and reliable performance make it ideal for both hobbyists and professional engineers seeking dependable components for their projects.

Features and Benefits

  • High performance in a compact package
  • Low power consumption
  • Robust construction ensuring long-term reliability
  • Easy to integrate with existing systems
  • Wide operating temperature range

Applications

  • Consumer electronics projects
  • Embedded systems
  • Prototyping and experimentation
  • Educational and DIY kits
  • Automated control systems

Additional Details

The AH168261-A is designed with user-friendliness in mind, offering simple connectivity options that reduce the complexity of assembly and maintenance. Its adaptable features make it a preferred choice across various platforms and systems.
