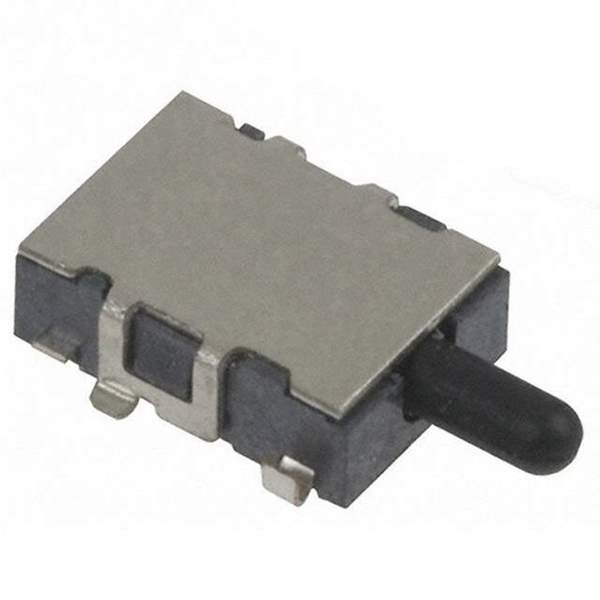

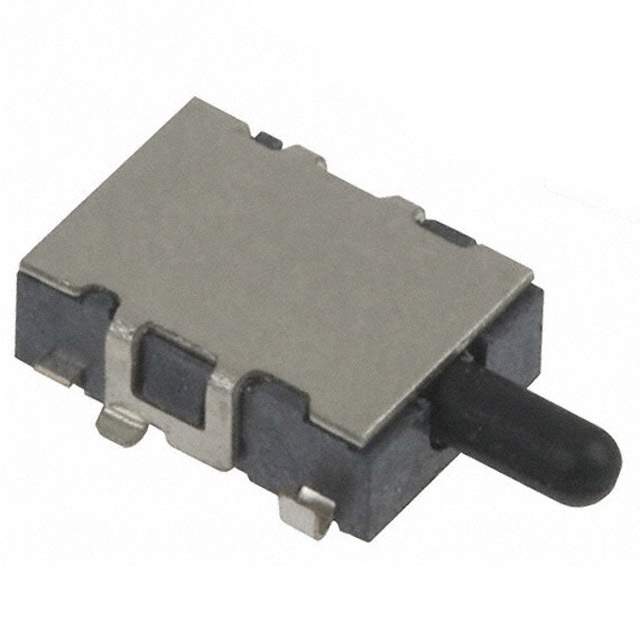

SDS001R Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer C&K
Packaging Reel - TR
Status Active
Circuit SPST-NO
Switch Function Off-Mom
Current Rating 100mA (DC)
Voltage Rating - DC 12V
Actuator Type Overtravel Plunger
Mounting Surface Mount, Right Angle
Termination Style SMD (SMT) Tab
Operating Force, Torque 75gf
Overtravel 0.079" (2.0mm)
Mechanical Life 50,000 Cycles
Electrical Life 50,000 Cycles
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 1095104-SDS001R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SDS001R CAD Model

Description

The C&K electronic component (product) is a switch with an SMD (SMT) tab termination style.

  • Current Rating: 100mA (DC)
  • Voltage Rating - DC: 12V
  • Packaging: reel - TR
  • Circuit: SPST-NO
  • Supply and Demand Status: balanced
  • Switch Function: Off-Mom
  • Actuator Type: overtravel plunger
  • Electrical Life: 50,000 cycles
  • Mechanical Life: 50,000 cycles
  • Operating Force/Torque: 75gf
  • Overtravel: 0.079" (2.0mm)
  • Temperature Range - Operating: -40°C to 85°C
