Same model may have multiple batches, images only for reference.

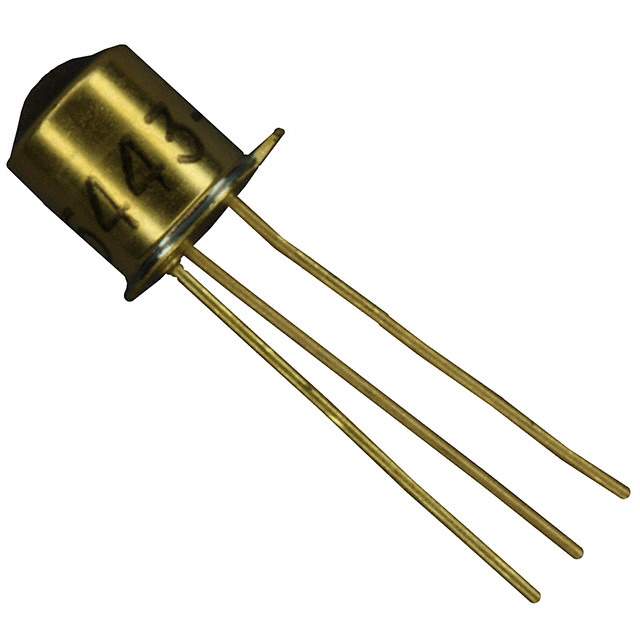

SD5443-003 Real Image
Same model may have multiple batches, images only for reference.

SD5443-003

Part No SD5443-003
Manufacturer Honeywell
Catalog Optical Sensors - Phototransistors
Description Phototransistor IR Chip Silicon 3-Pin TO-46 / SENSOR PHOTOTRANSISTOR NPN TO-46
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Packaging Bulk
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Maximum Current Collector 8mA
Current - Dark (Id) (Max) 100nA
Viewing Angle 18°
Maximum Power Dissipation 150mW
Mounting Through Hole
Orientation Top View
Temperature Range - Operating -55°C to 125°C (TA)
Dimension TO-46-3 Metal Can
Win Source Part Number 046808-SD5443-003
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name SD5443
Introduction Date February 20, 1997
ECCN EAR99
Country of Origin Mexico
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian SD5443-003 CAD Model

Description

The Honeywell Sensing and Productivity Solutions SD5443 is a through-hole mounted sensor that belongs to the SD5443 family.

  • Mounting Type: Through-hole
  • Family: SD5443
  • Maximum Collector-Emitter Breakdown Voltage: 30V
  • Maximum Power Dissipation: 150mW
  • Dark Current: 100nA
  • Viewing Angle: 18 degrees
  • Common Usage: Sensors and transducers
  • Operating Temperature: -55 degrees Celsius to 125 degrees Celsius
  • Package: TO-46-3 metal can package
  • Maximum Current Collector: 8mA
  • Supply and Demand Status: Limited
