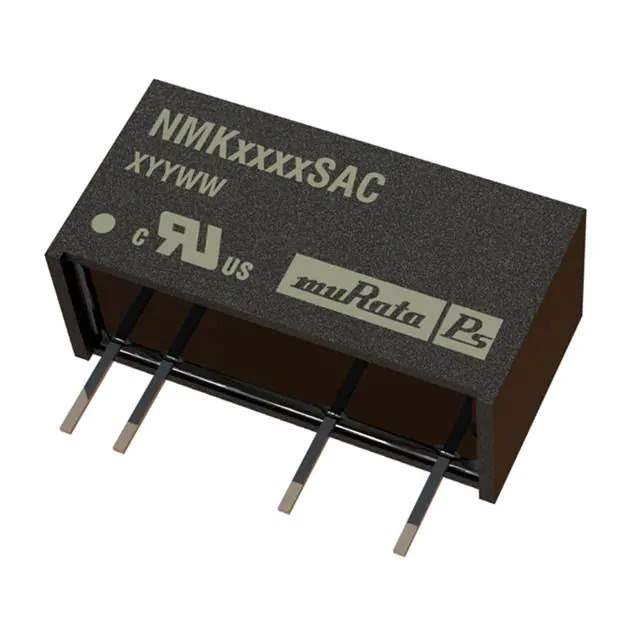

NMK1515SAC Real Image
Same model may have multiple batches, images only for reference.

NMK1515SAC

Part No NMK1515SAC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 2W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMK (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 13.5V
Voltage - Input (Max) 16.5V
Voltage - Output 1 15V
Current - Output (Max) 133mA
Power (Watts) 2 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 88%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.30" W x 0.40" H (19.7mm x 7.7mm x 10.2mm)
Base Product Number NMK15
Standard Package 25 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649181-NMK1515SAC
Ultra Librarian 3D Model Ultra Librarian NMK1515SAC CAD Model

Description

The NMK1515SAC is a 2W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Series: NMK series
  • Power: 2W
  • Application: power supplies in board mount applications
  • Voltage Isolation: 3 kV
  • Maximum Output Current: 133mA
  • Input Voltage Range: between 13.5V and 16.5V
  • Output Voltage: 15V
  • Efficiency: 88%
  • Package: 7-SIP module with 4 leads
  • Application: ITE (Commercial)
  • Size: 0.77" L x 0.30" W x 0.40" H
  • Operating Temperature: -40°C to 85°C
  • Status: Active
