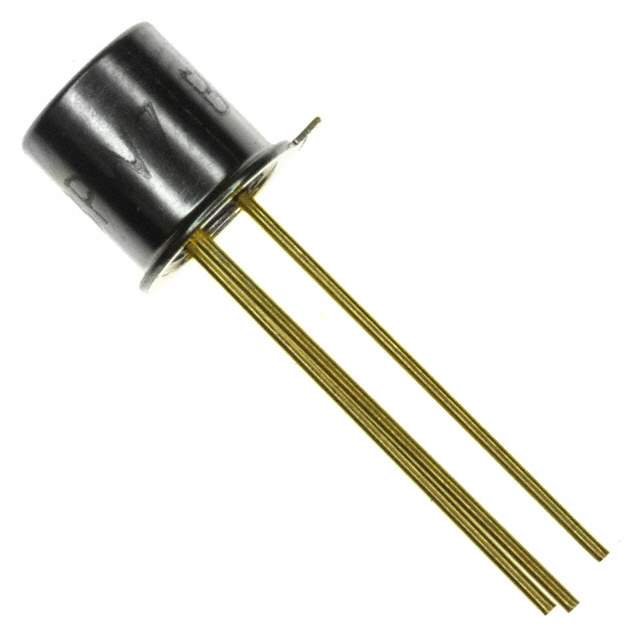

BPW77NB Real Image
Same model may have multiple batches, images only for reference.

BPW77NB

Part No BPW77NB
Manufacturer Vishay
Catalog Optical Sensors - Phototransistors
Description PHOTOTRANSISTOR NPN TO-18 / Phototransistor IR Chip Silicon 850nm 3-Pin TO-206AA Bulk
Datasheet
BPW77NB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay Semiconductor Opto Division
Packaging Bulk
Voltage - Collector Emitter Breakdown (Maximum) 70V
Current - Collector (Ic) (Maximum) 50mA
Current - Dark (Id) (Maximum) 100nA
Wavelength 850nm
Viewing Angle 20°
Power - Max 250mW
Mounting Style Through Hole
Orientation Top View
Operating Temperature Range -40°C ~ 125°C (TA)
Package TO-206AA, TO-18-3 Metal Can
Win Source Part Number 770259-BPW77NB
Popularity Medium
Supply and Demand Status Limited
Family Name BPW77N
Introduction Date July 29, 2008
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian BPW77NB CAD Model

Description

The BPW77NB is a through-hole mounting style electronic component manufactured by Vishay Semiconductor Opto Division.

  • Manufacturer Homepage: www.vishay.com
  • Part Number: 770259
  • Maximum Power: 250mW
  • Viewing Angle: 20 degrees
  • Wavelength: 850nm
  • Collector Current: 50mA
