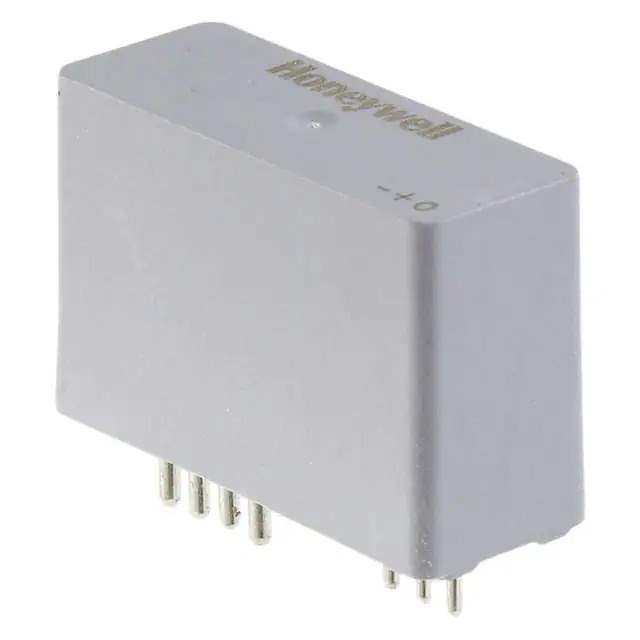

CSNE151-100 Real Image
Same model may have multiple batches, images only for reference.

CSNE151-100

Part No CSNE151-100
Manufacturer Honeywell
Catalog Current Transducers
Description SENSOR CURRENT HALL 36A AC/DC
Datasheet
CSNE151-100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Current Sensors
Mfr Honeywell
Series CSN
Package Bulk
Product Status Active
For Measuring AC/DC
Sensor Type Hall Effect, Closed Loop
Current - Sensing 36A
Number of Channels 1
Output Ratiometric, Current
Frequency DC ~ 150kHz
Linearity ±0.2%
Accuracy ±0.5%
Voltage - Supply ±15V
Response Time 1µs
Current - Supply (Max) 10mA
Temperature Range - Operating 0°C ~ 70°C
Polarization Bidirectional
Mounting Type Through Hole
Package / Case Module, Single Pass Through
Base Product Number CSNE151
Standard Package 25 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9030.33.3800
Win Source Part Number 580890-CSNE151-100
Ultra Librarian 3D Model Ultra Librarian CSNE151-100 CAD Model

Description

The Honeywell Current Sensor with part number 580890-CSNE151-100 is a high-performance sensor designed for measuring current in AC/DC applications.

  • Category: Sensors, Transducers - Current Sensors
  • Series: CSN
  • Package: Bulk
  • Standard Package Quantity: 25 pieces
  • Response Time: 1μs
  • Frequency Range: DC to 150kHz
  • Output: Ratiometric, current output
  • Polarization: Bidirectional
  • Maximum Supply Current: 10mA
  • Channel: Single
  • Sensitivity, Accuracy, Linearity: ±0.2%, ±0.5% respectively
  • Voltage Supply Range: ±15V
  • Mounting: Through-hole
  • Package: Module, single pass through
  • Operating Temperature Range: 0°C to 70°C
  • MSL Level: 1
  • HTSUS Code: 9030.33.3800
  • Manufacturer: Honeywell
  • Product Status: Active
