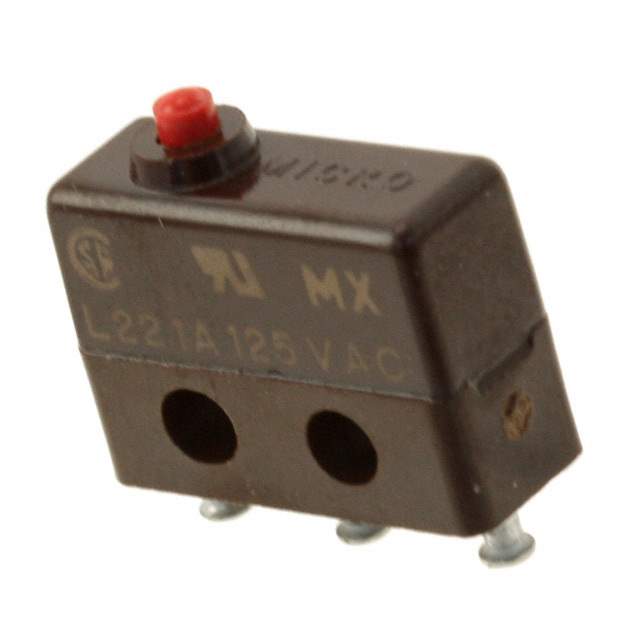

3SX1-T Real Image
Same model may have multiple batches, images only for reference.

3SX1-T

Part No 3SX1-T
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 1A 125V / Switch SPDT Chassis Mount
Datasheet
3SX1-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series SX
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 1A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Solder Turret
Operating Force 141gf
Release Force 28gf
Operating Position 0.320" (8.13mm)
Pretravel 0.020" (0.5mm)
Differential Travel 0.005" (0.13mm)
Overtravel 0.004" (0.1mm)
Temperature Range - Operating -55°C ~ 125°C
Mechanical Life 1,000,000 Cycles
Base Product Number 3SX1
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9055
Win Source Part Number 1338772-3SX1-T
Ultra Librarian 3D Model Ultra Librarian 3SX1-T CAD Model

Description

The Honeywell Sensing and Productivity Solutions 3SX1-T is a limit switch with a circuit of SPDT and a switch function of On-Mom.

  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Round Pin Plunger
  • Operating Position: 0.320" (8.13mm)
  • Differential Travel: 0.005" (0.13mm)
  • Overtravel: 0.004" (0.1mm)
  • Release Force: 28gf
  • Operating Force: 141gf
  • Mechanical Life: 1,000,000 Cycles
  • Pretravel: 0.020" (0.5mm)
  • Package: Bulk
  • Standard Package: 100 Units
  • Termination Style: Solder Turret
  • Voltage Rating: 125V AC, 30V DC
  • Applications: Industrial Control Equipment, Machine Tools, Material Handling Equipment
