AD8313ARMZ RF Detector by Analog Devices Inc.

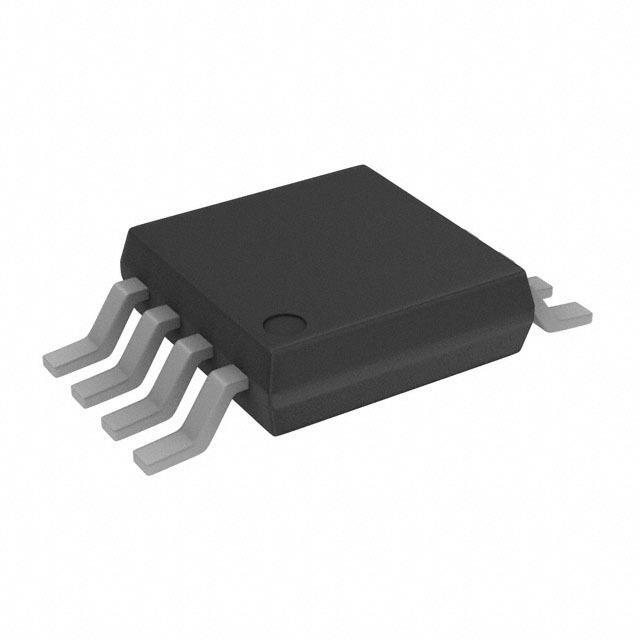

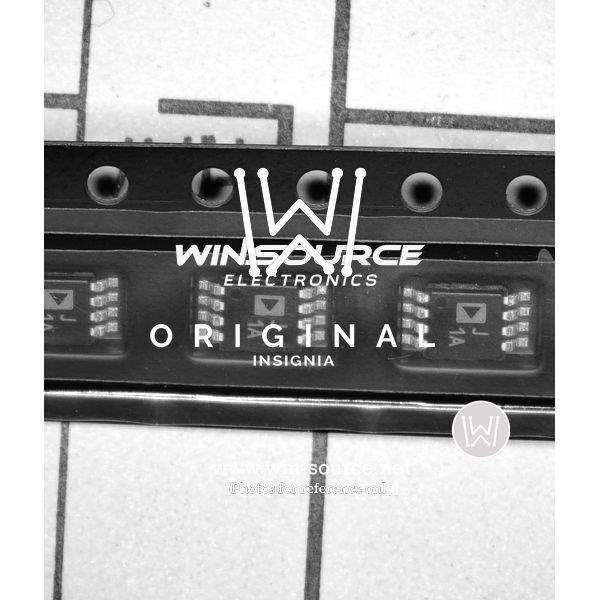

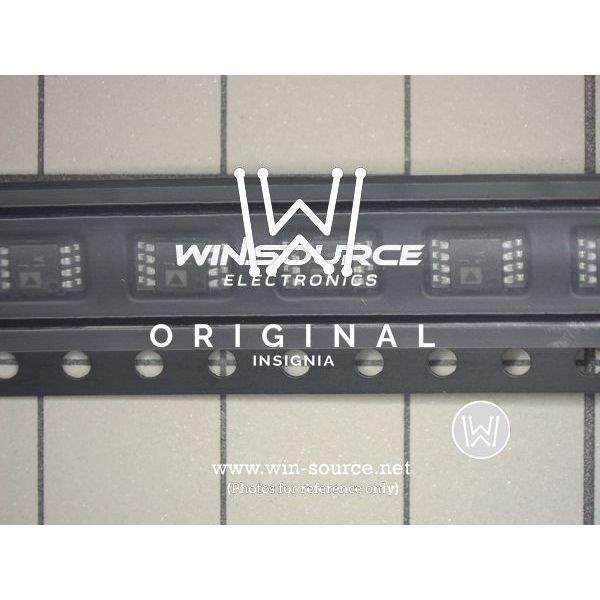

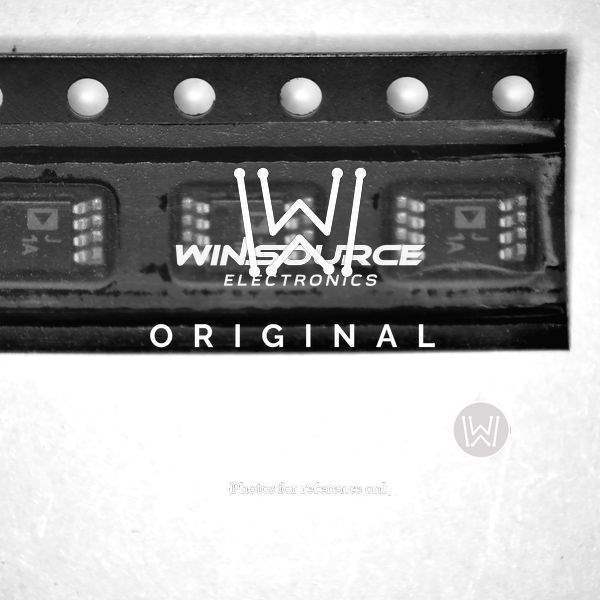

The AD8313ARMZ is a state-of-the-art RF (radio frequency) detector from the renowned manufacturer Analog Devices Inc. Designed for the 0.1 GHz to 2.5 GHz frequency range, this product is a complete, demodulating logarithmic amplifier with a high level of accuracy and a dynamic range of 70 dB. It is presented in a compact MSOP-8 (Mini Small Outline Package) that offers a space-saving solution for a variety of applications.

At the heart of the AD8313ARMZ is a cascade of amplifier/limiter cells, each of which provides a small detection voltage proportional to the logarithm of its input voltage. This innovative design allows the device to maintain a precise logarithmic conformance over a wide dynamic range. Its temperature stability and high accuracy make it an ideal choice for precision RF power measurement and control systems in wireless infrastructure, radar systems, and other RF communication applications.

The device operates from a single 2.7 V to 5.5 V supply, with a typical current consumption of only 6 mA, which is beneficial for power-sensitive designs. The AD8313ARMZ also features a fast response time, with a typical output rise time of just 10 ns for a 10 dB power step, ensuring rapid performance in demanding environments.

Additional features of the AD8313ARMZ include a low power shutdown mode, which reduces the supply current to less than 0.2 µA, thereby extending the battery life in portable applications. The logarithmic amplifier provides a proportional voltage output with a slope of typically -25 mV/dB, and it has an intercept of -84 dBm using a 50 Ω source impedance.

For designers and engineers looking for a reliable RF detection solution, the AD8313ARMZ offers a combination of performance, compactness, and ease of use. Its robust construction and high-level integration make it a versatile component for a wide range of RF monitoring and signal processing tasks.

With Analog Devices Inc.'s reputation for high-quality components, the AD8313ARMZ RF detector stands out as a superior choice for applications requiring precise and reliable RF power detection.
