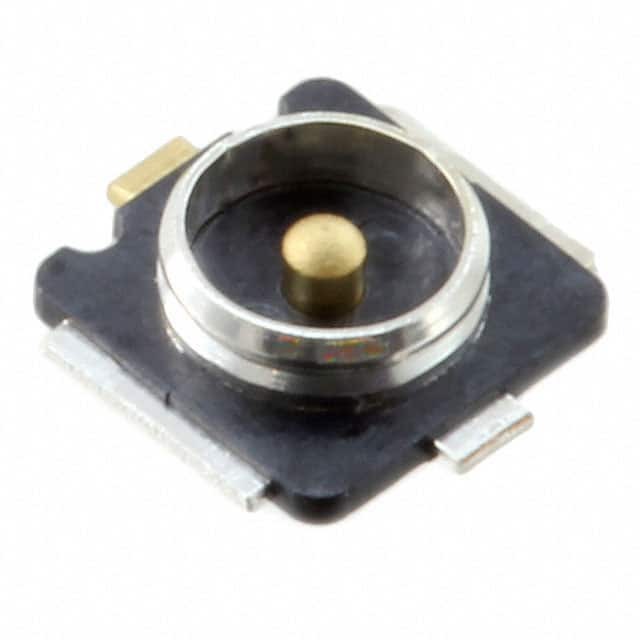

Same model may have multiple batches, images only for reference.
N.FL-R-SMT-1(60)
Same model may have multiple batches, images only for reference.

N.FL-R-SMT-1(60)

Part No N.FL-R-SMT-1(60)
Manufacturer Hirose Electric Co Ltd
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN N.FL RCPT STR 50 OHM SMD / U.FL (UMCC) Connector Receptacle, Male Pin 50Ohm Surface Mount Solder
Datasheet
N.FL-R-SMT-1(60) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Hirose Electric Co Ltd
Series N.FL
Package Tape & Reel
Product Status Last Time Buy
Connector Style U.FL (UMCC)
Connector Type Receptacle, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Surface Mount
Fastening Type Snap-On
Frequency - Max 6 GHz
Number of Ports 1
Housing Color Black
Center Contact Material Brass
Body Material Phosphor Bronze
Body Finish Silver
Center Contact Plating Gold
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C ~ 90°C
Mating Cycles 20
Base Product Number N.FL
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 886702-N.FL-R-SMT-1(60)
Ultra Librarian 3D Model Ultra Librarian N.FL-R-SMT-1(60) CAD Model

Description

The N.FL-R-SMT-1(60) is a coaxial connector assembly designed for high-frequency applications.

  • Connector Type: Receptacle with Male Pin
  • Fastening Type: Snap-On
  • Body Material: Phosphor Bronze
  • Body Finish: Silver
  • Impedance: 50Ohm
  • Maximum Frequency: 6 GHz
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 90°C
  • Mating Cycle: 20
  • Packaging: Tape & Reel
  • Manufacturer: Hirose Electric Co Ltd
