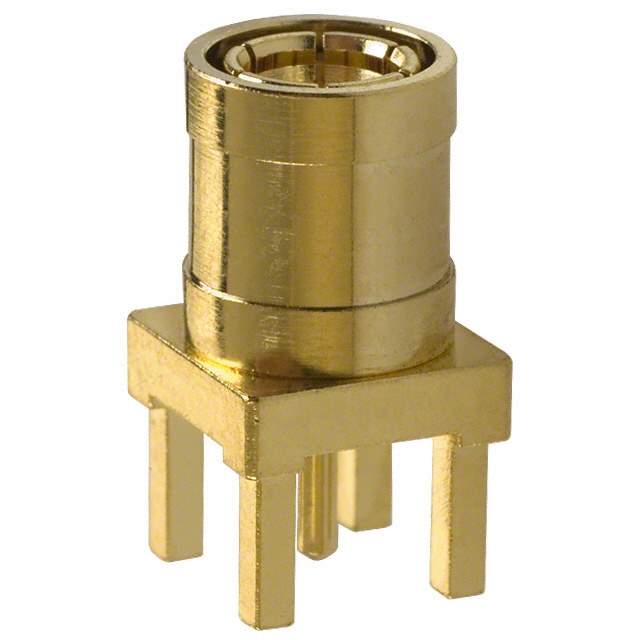

142134 Real Image
Same model may have multiple batches, images only for reference.

142134

Part No 142134
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMB PLUG STR 50 OHM PCB
Datasheet
142134 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Amphenol-RF Division
Package Bag
Product Status Active
Connector Style SMB
Connector Type Plug, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Through Hole
Fastening Type Snap-On
Frequency - Max 4 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Brass
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 335 V
Mating Cycles 500
Insertion Loss 0.3dB
Base Product Number 1421
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
California Prop 65 Warning Information
Win Source Part Number 847468-142134
Ultra Librarian 3D Model Ultra Librarian 142134 CAD Model

Description

The 847468-142134 is a plug female socket SMB coaxial connector assembly from Amphenol-RF Division.

  • Fastening Type: Snap-on
  • Voltage Rating: 335 V
  • Material: Brass
  • Housing Color: Gold
  • Impedance: 50 Ohm
  • Insertion Loss: 0.3dB
  • Center Contact Material: Brass
  • Center Contact Plating: Gold
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Mating Cycle: 500
  • Mounting: Through a hole
  • Temperature Range: -65°C to 165°C
  • Status: Active
  • REACH: Compliant
