031-70556
Same model may have multiple batches, images only for reference.

031-70556

Part No 031-70556
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Assemblies

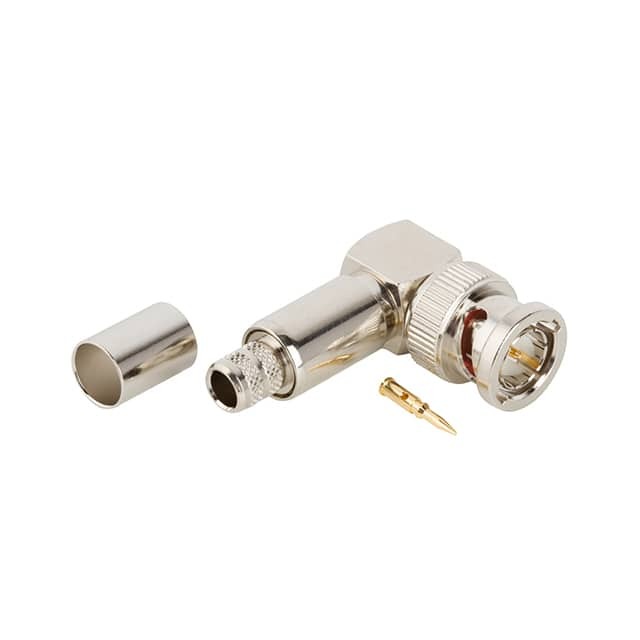

Description BNC RIGHT ANGLE CRIMP PLUG FOR R / BNC Connector Plug, Male Pin 75Ohm Free Hanging (In-Line), Right Angle Crimp
Datasheet
031-70556 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Amphenol-RF Division
Package Bulk
Product Status Active
Connector Style BNC
Connector Type Plug, Male Pin
Contact Termination Crimp
Shield Termination Crimp
Impedance 75Ohm
Mounting Type Free Hanging (In-Line), Right Angle
Cable Group RG-6
Fastening Type Bayonet Lock
Frequency - Max 4 GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Brass
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 500
Base Product Number 031-70
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
California Prop 65 Warning Information
Win Source Part Number 931982-031-70556
Ultra Librarian 3D Model Ultra Librarian 031-70556 CAD Model

Description

The 931982-031-70556 is a BNC Coaxial Connector Assembly designed for use in electronic applications.

  • Connector Type: Plug with Male Pin
  • Fastening Type: Bayonet Lock
  • Material: Brass with Nickel Finish
  • Center Contact: Brass with Gold Plating
  • Cable Group: RG-6
  • Impedance: 75Ohm
  • Frequency: Up to 4 GHz
  • Temperature Range: -65°C to 165°C
  • Compliance: REACH and California Prop 65 Compliant
