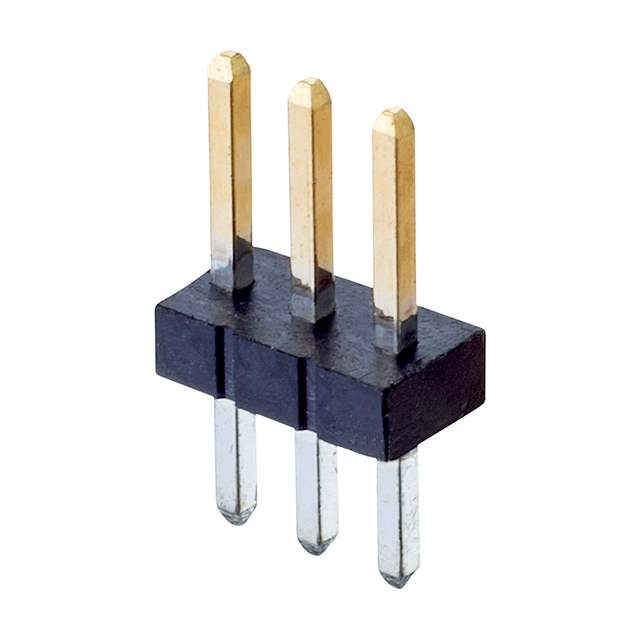

Part No M50-3530342
Manufacturer Harwin Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 3POS 1.27MM / Connector Header Through Hole 3 position 0.050" (1.27mm)
Datasheet
M50-3530342 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Harwin Inc.
Series Archer M50
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.118" (3.00mm)
Contact Length - Post 0.091" (2.30mm)
Overall Contact Length 0.248" (6.30mm)
Insulation Height 0.039" (1.00mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA9T) , Nylon 9T
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A per Contact
Mated Stacking Heights 3.10mm, 4.60mm, 5.40mm
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number M50-353
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340624-M50-3530342
Ultra Librarian 3D Model Ultra Librarian M50-3530342 CAD Model

Description

The Archer M50 series male header connector is a 3-position, board-to-board connector with a pitch of 1.27mm.

  • Number of Positions: 3
  • Mounting Type: Through Hole
  • Pitch: 1.27mm
  • Insulation Material: Polyamide (PA9T), Nylon 9T
  • Flammability Rating: UL94 V-0
  • Contact Finish: Gold
  • Post Finish: Tin
  • Post Finish Thickness: 100.0µin (2.54µm)
  • Current Rating per Contact: 1A
  • Operating Temperature: -40°C ~ 105°C
  • Shrouding: Unshrouded
  • Contact Shape: Square
  • Package: Bulk
  • Standard Package: 1000
