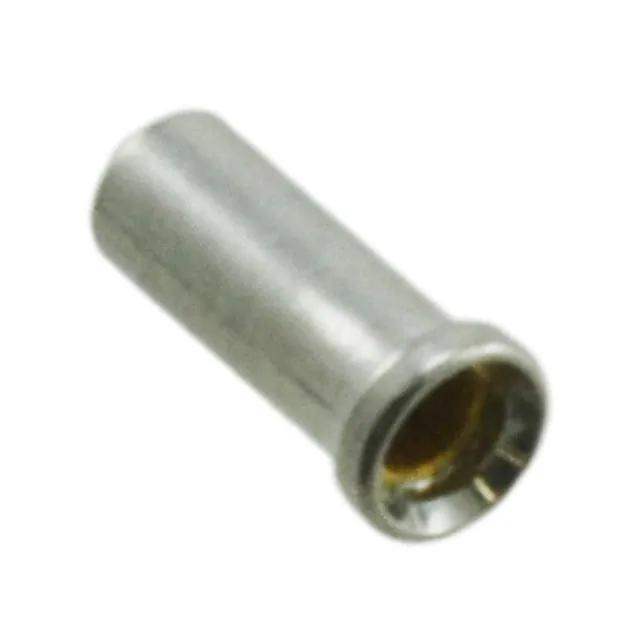

H3183-01 Harwin Inc.
Same model may have multiple batches, images only for reference.

H3183-01

Part No H3183-01
Manufacturer Harwin Inc.
Catalog Terminals
Description CONN PIN RCPT .035-.041 SOLDER
Datasheet
H3183-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1197006-H3183-01
Manufacturer Harwin Inc.
Category Connectors, Interconnects -Terminals -PC Pin Receptacles, Socket Connectors
Package Bulk
Product Status Active
Tail Type No Tail
Termination Solder
Length - Overall 0.207" (5.26mm)
Operating Temperature -55°C ~ 125°C
Insertion Force 3.00N ~ 9.00N
Contact Finish Gold
Ultra Librarian 3D Model Ultra Librarian H3183-01 CAD Model

Description

The PC pin receptacle socket connector is a solder termination type connector manufactured by Harwin Inc.

  • Contact Finish: gold
  • Package: bulk
  • Overall Length: 0.207 inches (5.26mm)
  • Tail Type: none
  • Insertion Force: 3.00N to 9.00N
  • Operating Temperature Range: -55°C to 125°C
  • Product Status: active
