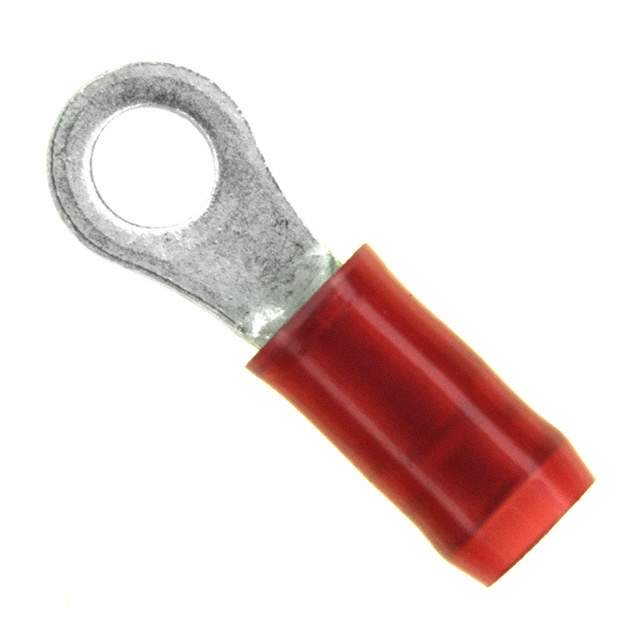

51863-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Ring Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Circular
Stud/Tab Size 6 Stud
Thickness 0.031" (0.79mm)
Width - Outer Edges 0.250" (6.35mm)
Length - Overall 0.782" (19.86mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 16-22 AWG
Insulation Insulated
Features Serrated Termination
Color Red
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.080" ~ 0.125" (2.03mm ~ 3.18mm)
Material - Insulation Polyamide (PA), Nylon
Base Product Number 51863
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A28087-ND,518631,-51863-1-SI,A27233CT,A27233TR,A28087,2266-51863-1TR,51863-1-ND
Standard Package 5,000
Win Source Part Number 1333698-51863-1
Ultra Librarian 3D Model Ultra Librarian 51863-1 CAD Model

Description

The TE Connectivity AMP Connectors 51863-1 is a red-colored ring connector with a crimp termination.

  • Color: Red
  • Termination: Crimp
  • Wire Gauge: 16-22 AWG
  • Contact Material: Copper
  • Win Source Part Number: 1333698-51863-1
  • Terminal Type: Insulated
  • Thickness: 0.031" (0.79mm)
  • Width: 0.250" (6.35mm)
  • Supply and Demand Status: Limited Supply and Demand
  • Popularity: Medium
