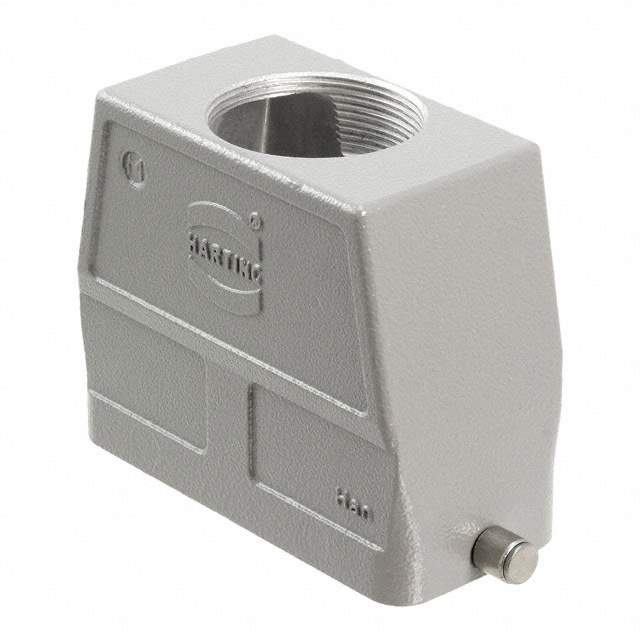

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Heavy Duty Connectors>Heavy Duty Connector Housings, Hoods, Bases
Mfr HARTING
Series Han® B
Package Bulk
Connector Type Hood
Style Top Entry
Size 24B
Lock Location Locking Clip (1) on Base Bottom
Thread Size M40
Size / Dimension 4.724" L x 1.693" W x 2.992" H (120.00mm x 43.00mm x 76.00mm)
Housing Color Gray
Features -
Ingress Protection IP65 - Dust Tight, Water Resistant
Housing Material Aluminum, Die Cast
Housing Finish Powder Coated
Temperature Range - Operating -40°C ~ 125°C
Base Product Number 19300240
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Standard Package 1 pcs
Win Source Part Number 1380599-19300240448
Ultra Librarian 3D Model Ultra Librarian 19300240448 CAD Model

Description

The Han® B series heavy duty connector housing is a high-quality and durable solution for your heavy duty connectivity needs.

  • Connector Type: Hood connector
  • Entry: Top entry
  • Ingress Protection: IP65
  • Housing Material: Aluminum die cast
  • Color: Gray
  • Size: 4.724" L x 1.693" W x 2.992" H (120.00mm x 43.00mm x 76.00mm)
  • Packaging: Bulk
  • Standard Package: 1 piece
  • Thread Size: M40
  • Operating Temperature: -40°C to 125°C
  • Housing Finish: Powder coated
  • ECCN: EAR99
  • REACH: Unaffected
  • Manufacturer: HARTING
  • Base Product Number: 19300240
  • Lock Location: Locking clip on the base bottom
  • MSL: 1
