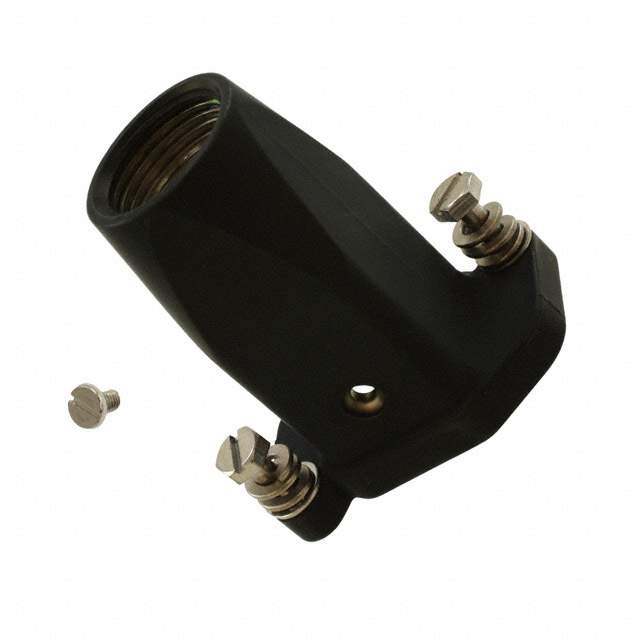

19400030410 Real Image1 19400030410 Real Image2
Same model may have multiple batches, images only for reference.
19400030410 Real Image1 19400030410 Real Image2
19400030410 Real Image1 19400030410 Real Image2
Same model may have multiple batches, images only for reference.

19400030410

Part No 19400030410
Manufacturer HARTING
Catalog Heavy Duty Connectors
Description CONN HOOD TOP ENTRY SZ3A M20 / Hood Connector Top Entry M20 3A IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Heavy Duty Connectors>Heavy Duty Connector Housings, Hoods, Bases
Mfr HARTING
Series Han® HPR
Package Bulk
Connector Type Hood
Style Top Entry
Size 3A
Lock Location Screw Locks on Hood
Thread Size M20
Size / Dimension 1.787" L x 1.276" W x 2.161" H (45.40mm x 32.40mm x 54.90mm)
Housing Color Black
Features -
Ingress Protection IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Housing Material Zinc, Die Cast
Housing Finish Chromate
Temperature Range - Operating -40°C ~ 125°C
Base Product Number 19400030
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Standard Package 1 pcs
Win Source Part Number 1380601-19400030410
Ultra Librarian 3D Model Ultra Librarian 19400030410 CAD Model

Description

The Han® HPR Heavy Duty Connector Hood is a top entry connector hood designed for heavy duty applications.

  • Housing Material: Zinc die-cast
  • Ingress Protection: IP65/IP68/IP69K
  • Size: 1.787" L x 1.276" W x 2.161" H (45.40mm x 32.40mm x 54.90mm)
  • Housing Color: Black
  • Locking: Compatible with screw locks
  • Operating Temperature: -40°C to 125°C
