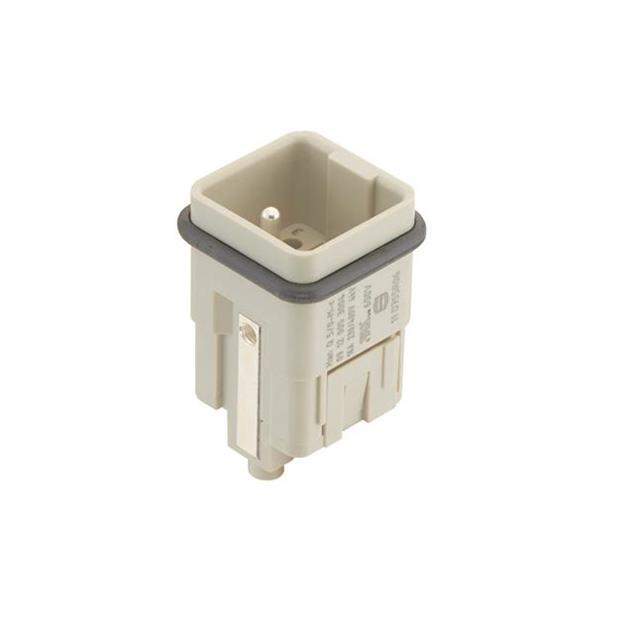

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Heavy Duty Connectors>Heavy Duty Connector Inserts, Modules
Mfr HARTING
Series Han® Q
Package Bulk
Connector Type Insert without Contacts
Gender Male
Number of Positions 5
Size 3A
Termination Style Crimp
Voltage Rating 400V
Current Rating (Amps) 16A
Contact Type Han® E
Temperature Range - Operating -40°C ~ 125°C
Color Gray
Housing Material Polycarbonate (PC)
Contact Material -
Contact Finish -
Material Flammability Rating UL94 V-0
Base Product Number 09120053
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Standard Package 10 pcs
Win Source Part Number 1380443-09120053004
Ultra Librarian 3D Model Ultra Librarian 09120053004 CAD Model

Description

The Han® Q Insert without Contacts is designed for use in applications that require a 5-position configuration.

  • Series: Han® Q
  • Number of Positions: 5
  • Termination Style: Crimp
  • Color: Gray
  • Housing Material: Polycarbonate (PC)
  • Voltage Rating: 400V
  • Current Rating: 16A
  • Gender: Male
  • Package Quantity: 10 pcs
  • Packaging: Bulk
  • Manufacturer: HARTING
