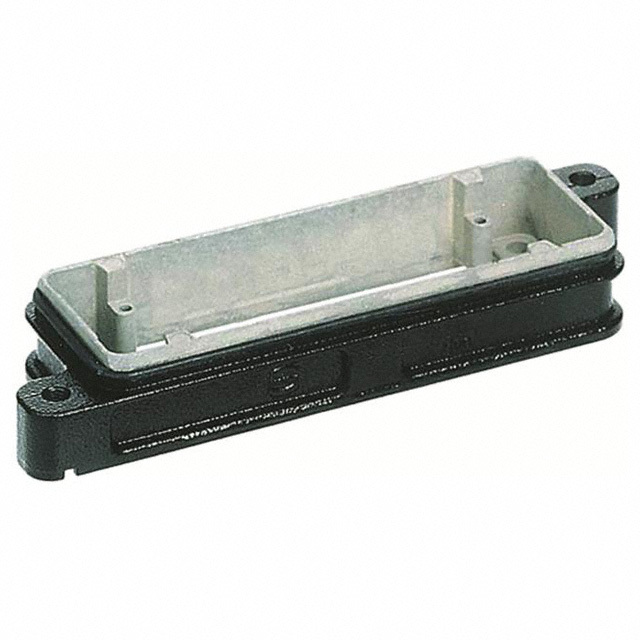

09400240311 HARTING – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

09400240311

Part No 09400240311
Manufacturer HARTING
Catalog Heavy Duty Connectors
Description Base - Panel Mount Connector Bottom Entry 24B IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer HARTING
Series Han® HPR
Packaging Bulk
Connector Type Base - Panel Mount
Style Bottom Entry
Size 24B
Lock Location Screw Locks on Hood
Size / Dimension 7.559" L x 2.283" W x 1.138" H (192.00mm x 58.00mm x 28.90mm)
Housing Color Black
Ingress Protection IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Housing Material Aluminum, Die Cast
Housing Finish Epoxy Powder Paint
Temperature Range - Operating -40°C ~ 125°C
Base Product Number 09400240
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1479931-09400240311
Ultra Librarian 3D Model Ultra Librarian 09400240311 CAD Model
