EJ508A MPD (Memory Protection Devices)

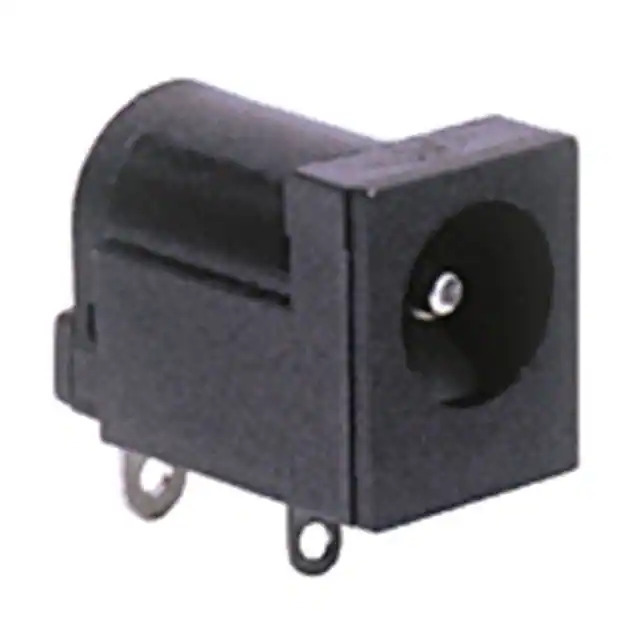

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Barrel Connectors - Power Connectors
Mfr MPD (Memory Protection Devices)
Series -
Package Bulk
Product Status Active
Connector Type Jack
Gender Male
Industry Recognized Mating Diameter 2.10mm ID (0.083"), 5.50mm OD (0.217")
Actual Diameter 0.079" (2.00mm ID)
Number of Positions/Contacts 2 Conductors, 3 Contacts
Internal Switch(s) Single Switch, Normally Closed
Mounting Type Through Hole, Right Angle
Mounting Feature -
Termination Solder Eyelet(s)
Shielding Unshielded
Features -
Insulation Color -
Voltage - Rated 12VDC
Current Rating (Amps) 5 A
Mating Length/Depth -
Ingress Protection -
Material Flammability Rating -
Temperature Range - Operating -15°C ~ 90°C
Contact Material - Plating -
Body Material -
Includes -
Housing Material Polybutylene Terephthalate (PBT)
Contact Material Brass, Phosphor Bronze
Thread Size -
Body Color Black
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.8510
Win Source Part Number 1378349-EJ508A
Ultra Librarian 3D Model Ultra Librarian EJ508A CAD Model

Description

The EJ508A is a power connector barrel jack from MPD (Memory Protection Devices).

  • Mounting Type: Through Hole, Right Angle
  • Voltage Rating: 12VDC
  • Current Rating: 5A
  • Shielding: Unshielded
  • Gender: Male
  • Switch: Single, Normally Closed Internal
  • Number of Conductors: 2
  • Number of Contacts: 3
  • Mating Diameter (ID): 2.10mm
  • Mating Diameter (OD): 5.50mm
  • Body Material: Polybutylene Terephthalate (PBT)
  • Body Color: Black
