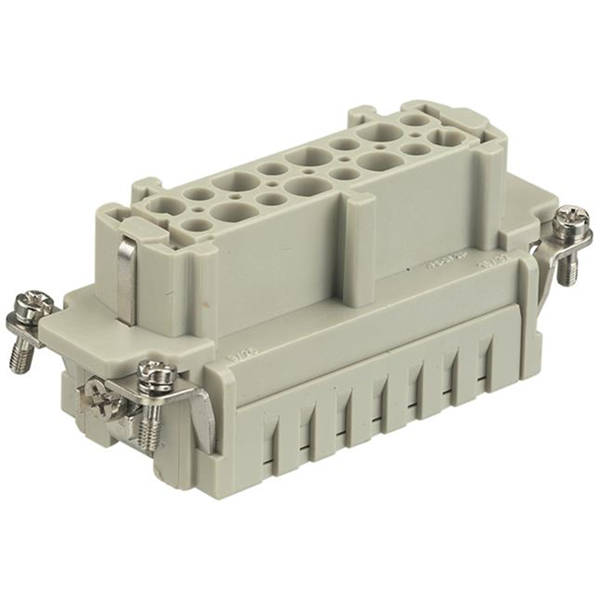

09360162702 Real Image1 09360162702 Real Image2
Same model may have multiple batches, images only for reference.
09360162702 Real Image1 09360162702 Real Image2
09360162702 Real Image1 09360162702 Real Image2
Same model may have multiple batches, images only for reference.

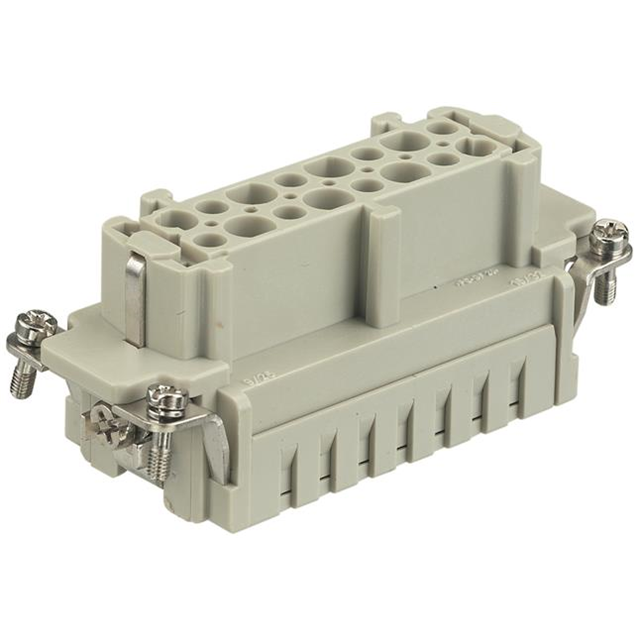

09360162702

Part No 09360162702
Manufacturer HARTING
Catalog Heavy Duty Connectors
Description HAN 16EX-F-C / Female Insert without Contacts Gray 16+Ground Position Crimp
Datasheet
09360162702 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Heavy Duty Connectors>Heavy Duty Connector Inserts, Modules
Mfr HARTING
Series Han® EX
Package Bulk
Connector Type Insert without Contacts
Gender Female
Number of Positions 16+Ground
Size 16B
Termination Style Crimp
Voltage Rating 90V
Current Rating (Amps) 16A
Contact Type Han® E
Temperature Range - Operating -20°C ~ 40°C
Color Gray
Housing Material Polycarbonate (PC)
Contact Material -
Contact Finish -
Material Flammability Rating UL94 V-0
Base Product Number 09360162
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Standard Package 1 pcs
Win Source Part Number 1380453-09360162702
Ultra Librarian 3D Model Ultra Librarian 09360162702 CAD Model

Description

The Han® EX 16+Ground heavy-duty connector insert is a reliable and versatile component for your electronic connections.

  • Series: Han® EX
  • Number of Positions: 16 + Ground
  • Termination Style: Crimp
  • Color: Gray
  • Housing Material: Polycarbonate (PC)
  • Flammability Rating: UL94 V-0
  • Voltage Rating: 90V
  • Current Rating: 16A
  • Operating Temperature: -20°C ~ 40°C
  • Manufacturer: HARTING
