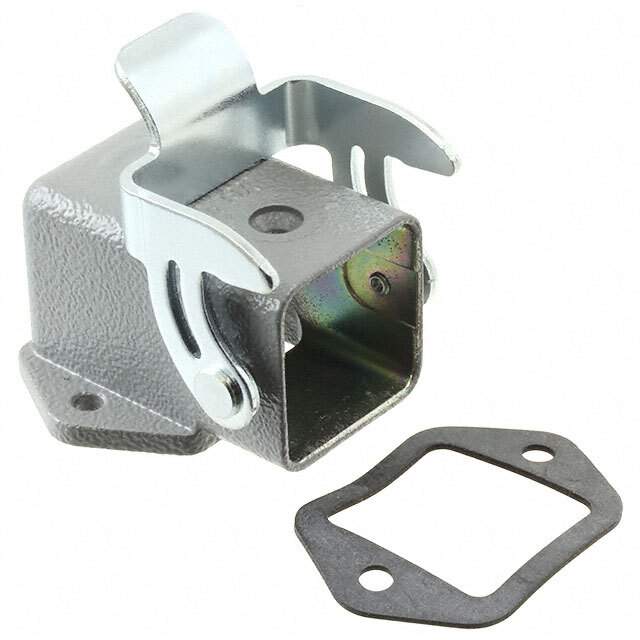

09200030801 Real Image1 09200030801 Real Image2
Same model may have multiple batches, images only for reference.
09200030801 Real Image1 09200030801 Real Image2
09200030801 Real Image1 09200030801 Real Image2
Same model may have multiple batches, images only for reference.

09200030801

Part No 09200030801
Manufacturer HARTING
Catalog Heavy Duty Connectors
Description CONN BASE SIDE ENTRY SZ3A / Base - Panel Mount 90° Connector Side Entry 3A IP44
Datasheet
09200030801 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Heavy Duty Connectors>Heavy Duty Connector Housings, Hoods, Bases
Mfr HARTING
Series Han® A
Package Bulk
Connector Type Base - Panel Mount 90°
Style Side Entry
Size 3A
Lock Location Locking Clip (1) on Base Bottom
Thread Size -
Size / Dimension 1.102" L x 1.575" W x 1.063" H (28.00mm x 40.00mm x 27.00mm)
Housing Color Gray
Features -
Ingress Protection IP44
Housing Material Zinc, Die Cast
Housing Finish Powder Coated
Temperature Range - Operating -40°C ~ 125°C
Base Product Number 09200030
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Standard Package 10 pcs
Win Source Part Number 1381245-09200030801
Ultra Librarian 3D Model Ultra Librarian 09200030801 CAD Model

Description

The Han® A series heavy-duty connector base is a high-quality connector designed for demanding applications.

  • Type: Panel Mount 90° Base Connector
  • Package: Bulk
  • Ingress Protection: IP44
  • Housing Material: Zinc, Die-Cast
  • Housing Color: Gray
  • Size/Dimension: 1.102" L x 1.575" W x 1.063" H (28.00mm x 40.00mm x 27.00mm)
  • Connector Style: Side Entry
  • Size: 3A
  • Temperature Range: -40°C to 125°C
  • Housing Finish: Powder Coated
  • ECCN: EAR99
  • HTSUS Code: 8538.90.8180
  • Manufacturer: HARTING
  • Base Product Number: 09200030
  • Lock Location: Locking Clip (1) on the Base Bottom
  • Moisture Sensitivity Level (MSL): 1 (Unlimited)
