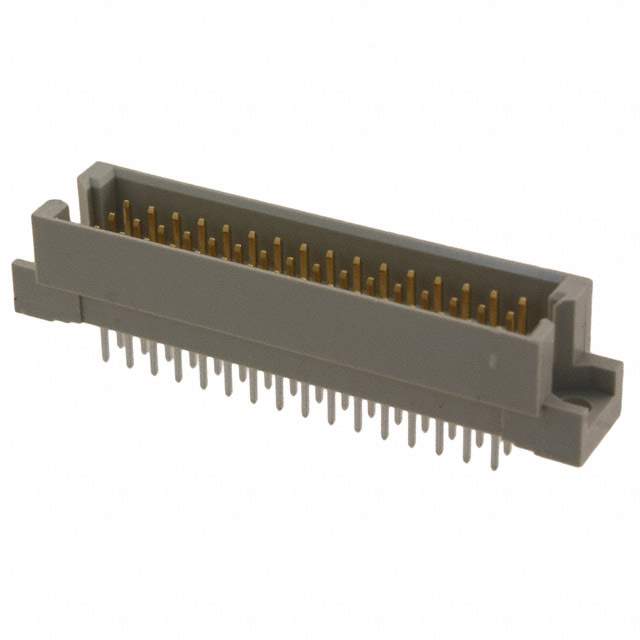

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr HARTING
Series DIN 41612
Package Bulk
Product Status Active
Connector Type Header, Male Pins
Number of Positions 48
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style 2R
Level, Class 2
Mounting Type Panel Mount, Through Hole
Termination Solder
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Material - Insulation Thermoplastic, Glass Filled
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 858609-09281486903
Ultra Librarian 3D Model Ultra Librarian 09281486903 CAD Model

Description

The HARTING 858609-09281486903 is a DIN 41612 series backplane connector.

  • Positions: 48
  • Pitch: 0.100" (2.54mm)
  • Type: Header with Male Pins
  • Termination: Solder
  • Contact Finish: Gold
  • Finish Thickness: Flash
  • Insulation Material: Thermoplastic, Glass-Filled
  • Flammability Rating: UL94 V-0
  • Mounting: Panel Mounted Through Hole
  • Temperature Range: Not Specified
  • Status: Active
  • Package: Bulk (20 pieces)
