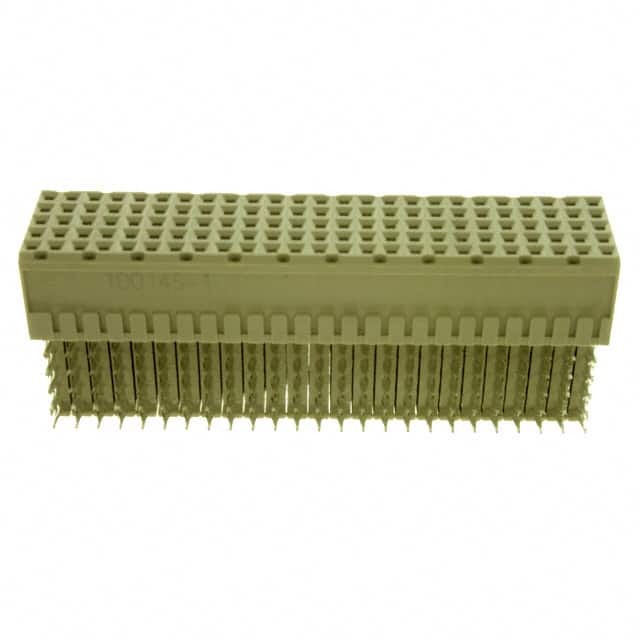

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Hard Metric, Standard
Mfr TE Connectivity
Series Z-PACK
Package Tube
Product Status Active
Connector Type Receptacle, Female Sockets
Connector Style B 25
Number of Positions 125
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Connector Usage Backplane
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Current Rating (Amps) 1.5 A
Voltage Rating 500Vrms
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 100145
Standard Package 11 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853542-100145-1
Ultra Librarian 3D Model Ultra Librarian 100145-1 CAD Model

Description

The Z-PACK 125-position receptacle connector is a hard metric, standard backplane connector designed for high-performance applications. It is manufactured by TE Connectivity.

  • Pitch: 0.079" (2.00mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Termination: Press-Fit
  • Voltage Rating: 500Vrms
  • Standard Package: 11 pcs
  • Mounting Application: Backplane
  • Connector Style: B 25
  • Temperature Range: -55°C to 125°C
  • ECCN Compliance: Compliant with ECCN regulations
