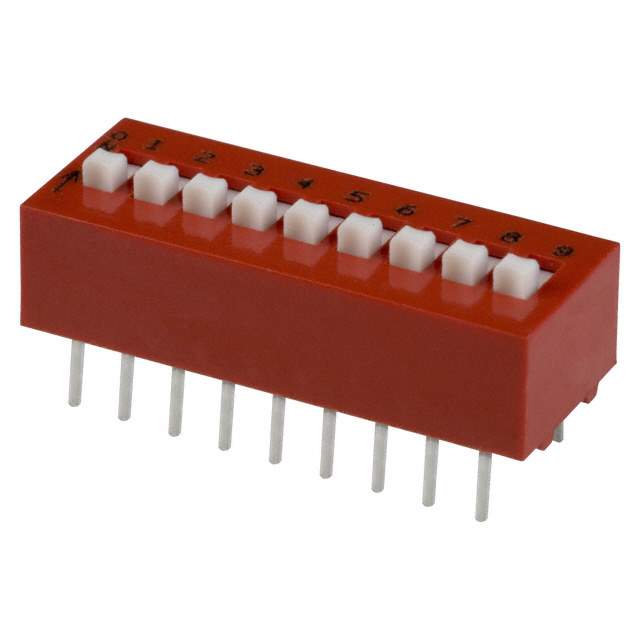

78B09S Real Image
Same model may have multiple batches, images only for reference.

78B09S

Part No 78B09S
Manufacturer Grayhill Inc.
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 150MA 30V
Datasheet
78B09S Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Grayhill Inc.
Packaging Tube/Rail
Status Obsolete(EOL)
Circuit SPST
Number of Positions 9
Current Rating 150mA
Voltage Rating 30VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.315" (8.00mm)
Mounting Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Body Material Thermoplastic
Length 0.980" (24.89mm)
Temperature Range - Operating -40°C to 85°C
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Win Source Part Number 1040952-78B09S
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 78B09S CAD Model

Description

The 78B09S is a SPST slide switch manufactured by Grayhill Inc. 78B09S is a product by Grayhill Inc..

  • Switch Type: SPST slide switch
  • Positions: 9
  • Pitch: 0.100" (2.54mm), full
  • Termination Style: PC pin
  • Contact Finish: gold
  • Voltage Rating: 30VDC
  • Current Rating: 150mA
  • Height Above Board: 0.315" (8.00mm)
  • Length: 0.980" (24.89mm)
  • Mounting: through hole
  • Supply and Demand Status: balanced
