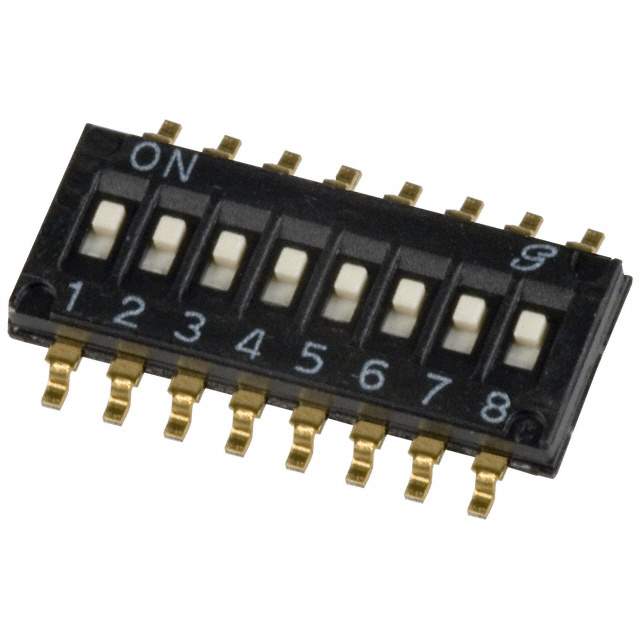

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer Grayhill Inc.
Packaging Reel - TR
Status Active
Circuit SPST
Number of Positions 8
Current Rating 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.063" (1.60mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Tape Seal
Body Material Polyamide (PA), Nylon
Length 0.448" (11.39mm)
Temperature Range - Operating -40°C to 85°C
Mechanical Life 1,000 Cycles
Win Source Part Number 1010801-97C08SRT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 97C08SRT CAD Model

Description

The 1010801-97C08SRT manufactured by Grayhill Inc. is a tape-sealed slide switch with a gull-wing termination style.

  • Pitch: 0.050" (1.27mm)
  • Size: half
  • Circuit: SPST
  • Actuator Type: slide (standard)
  • Actuator Level: flush or recessed
  • Washable: yes
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Mounting: SMD (SMT)
  • Body Material: Polyamide (PA), Nylon
  • Mechanical Life: 1,000 cycles
  • Operating Temperature Range: -40°C to 85°C
