Same model may have multiple batches, images only for reference.

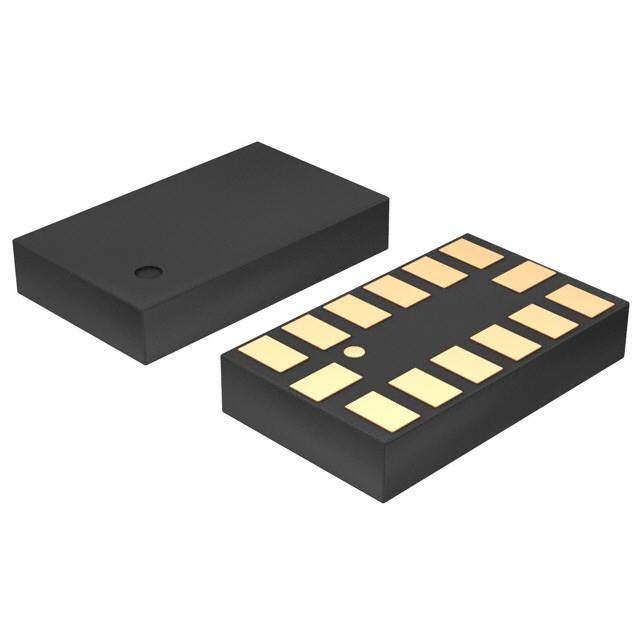

MMA7456LR1 Real Image
Same model may have multiple batches, images only for reference.

MMA7456LR1

Part No MMA7456LR1
Manufacturer Freescale Semiconductor - NXP
Catalog Motion Sensors - Accelerometers
Description ACCELEROMETER 2-8G I2C/SPI 14LGA
Datasheet
MMA7456LR1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer NXP
Packaging Reel - TR
Status Obsolete(EOL)
Type Digital
Axis X, Y, Z
Acceleration Range ±2g, 4g, 8g
Sensitivity (LSB/g) 64 (±2g) to 16 (±8g)
Bandwidth 62.5Hz to 125Hz
Output Type I2C, SPI
Supply Voltage - Operating 2.4 V to 3.6 V
Features Adjustable Bandwidth, Selectable Scale
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 14-LGA (3x5)
Win Source Part Number 059120-MMA7456LR1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MMA7456LR1 CAD Model

Description

The NXP 059120-MMA7456LR1 is a digital sensor designed for use in a wide range of applications, including gaming, robotics, and motion sensing.

  • Adjustable Bandwidth: Yes
  • Selectable Scale: Yes
  • Output Types: I2C and SPI
  • Acceleration Range: ±2g, 4g, 8g
  • Sensitivity: 64 (±2g) to 16 (±8g) LSB/g
  • Supply Voltage Operating Range: 2.4V to 3.6V
  • Package: 14-LGA (3x5)

Although it is obsolete (EOL), it is still a popular choice for many applications.
