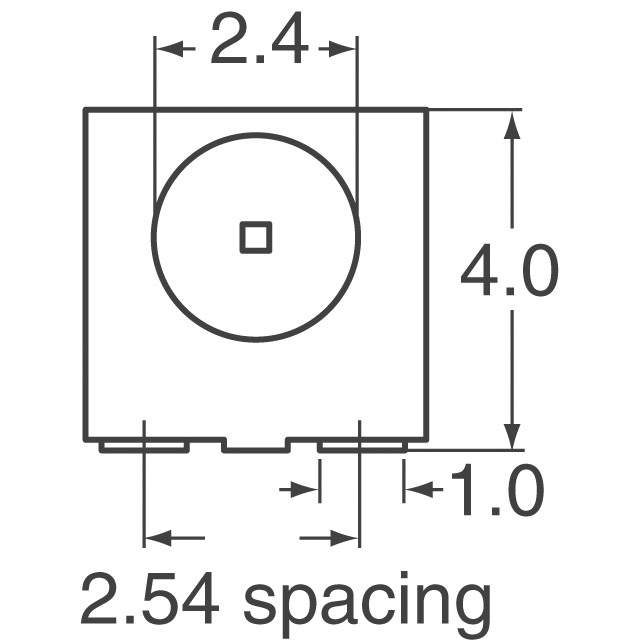

SFH 325-3-Z Real Image
Same model may have multiple batches, images only for reference.

SFH 325-3-Z

Part No SFH 325-3-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optical Sensors - Phototransistors
Description PHOTOTRANSISTOR NPN 980NM 2PLCC / Phototransistor Chip Silicon 980nm 2-Pin PLCC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer OSRAM Opto Semiconductors Inc.
Series SIDELED
Packaging Bulk
Voltage - Collector Emitter Breakdown (Maximum) 35V
Current - Collector (Ic) (Maximum) 15mA
Current - Dark (Id) (Maximum) 50nA
Wavelength 980nm
Viewing Angle 120°
Power - Max 165mW
Mounting Surface Mount, Right Angle
Orientation Side View
Operating Temperature Range -40°C ~ 100°C (TA)
Package 2-LCC (J-Lead)
Win Source Part Number 794140-SFH 325-3-Z
Popularity Medium
Supply and Demand Status Limited
Family Name SFH325
Introduction Date October 15, 1999
ECCN EAR99
Country of Origin China, Malaysia
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian SFH 325-3-Z CAD Model

Description

The SFH 325-3-Z is a SIDELED series component manufactured by OSRAM Opto Semiconductors Inc.

  • Mounting: Surface mount, right angle
  • Package: 2-LCC (J-Lead)
  • Power-max: 165mW
  • Viewing Angle: 120°
  • Wavelength: 980nm
  • Category: Sensors and Transducers
  • Current - Collector (Ic) (Maximum): 15mA
  • Voltage - Collector Emitter Breakdown (Maximum): 35V
  • Current - Dark (Id) (Maximum): 50nA
  • ECCN: EAR99
  • Country of Origin: China and Malaysia
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Introduction Date: October 15, 1999
