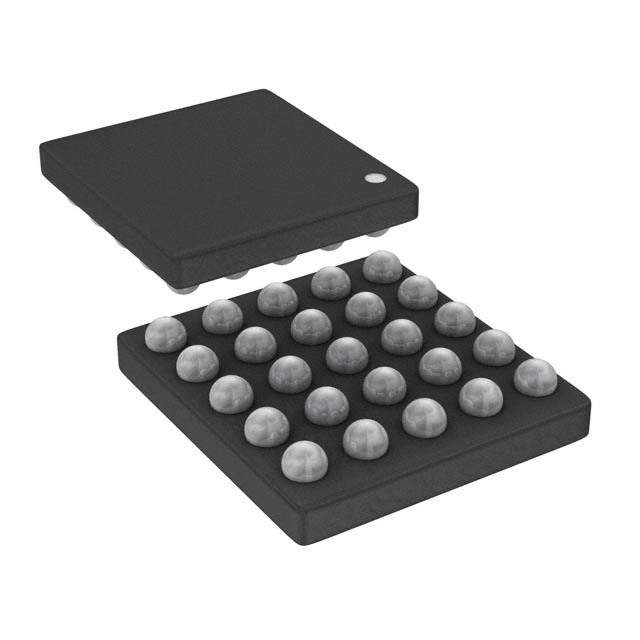

FAN54020UCX Real Image
Same model may have multiple batches, images only for reference.

FAN54020UCX

Part No FAN54020UCX
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Battery Chargers
Description IC LI-ION SW CHARGER USB / Switching Battery Charger Li-Ion/Li-Pol 1500mA 25-Pin WLCSP T/R
Datasheet
FAN54020UCX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Fairchild/ON Semiconductor
Packaging Reel package
Battery Chemistry Lithium-Ion/Polymer
Number of Cells 1
Current - Charging Constant - Programmable
Programmable Features Current, Timer, Voltage
Fault Protection Over Temperature, Over Voltage, Short Circuit
Charge Current - Max 1.5A
Battery Pack Voltage 4.5V (Maximum)
Voltage Supply MAX 7.5V
Interface I2C
Operating Temperature Range -30°C ~ 85°C (TA)
Package 25-UFBGA, WLCSP
Manufacturer Package 25-WLCSP (2.05x2.05)
Win Source Part Number 774422-FAN54020UCX
Popularity Medium
Supply and Demand Status Limited
Quantity per package 3k pcs
Family Name FAN54020
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian FAN54020UCX CAD Model

Description

The FAN54020UCX is a lithium-ion/polymer battery charger IC manufactured by Fairchild/ON Semiconductor.

  • Maximum Charge Current: 1.5A
  • Battery Pack Voltage: 4.5V
  • Features: Programmable current, timer, and voltage
  • Protection: Over-temperature, over-voltage, and short-circuit
  • Family: FAN54020
  • Voltage Supply Max: 7.5V
  • Interface: I2C
  • Package: 25-UFBGA, WLCSP
  • Operating Temperature Range: -30°C to 85°C
  • ECCN: EAR99
  • Country of Manufacture: Philippines
  • Estimated EOL Date: Obsolete/end of life
  • Popularity: Medium
  • Package: Reel
  • Quantity per Package: 3,000
