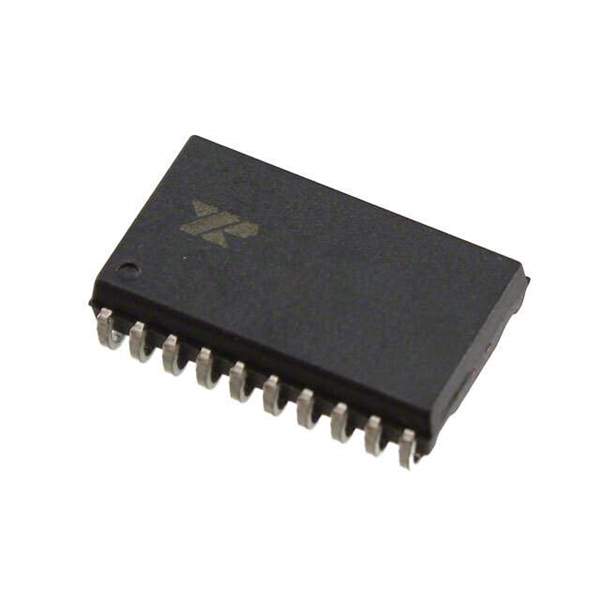

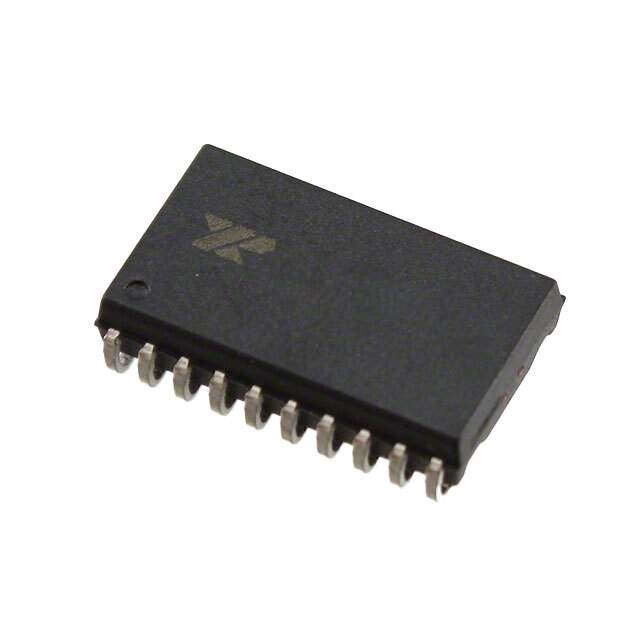

The XRT7295AEIW is a Single-Chip Integrated 16-Channel T1/E1/J1 Long Haul/Short Haul Line Interface Unit (LIU) transceiver manufactured by Exar Corporation. This device is designed to provide the physical layer interface between network equipment and T1, E1, or J1 communication lines.

Applications:

• Digital Cross-Connect Systems (DCS)
• Channel Banks
• PBX Systems
• Wireless Base Stations
• Voice over IP (VoIP) Gateways

Features:

• 16-Channel T1/E1/J1 LIU: Integrates 16 independent line interface units for T1, E1, and J1 communication lines.
• Long Haul/Short Haul: Supports both long-haul and short-haul line applications.
• Integrated Pulse Shaping: Includes pulse shaping circuitry for compliance with T1/E1/J1 standards.
• Jitter Attenuation: Provides jitter attenuation to improve signal quality.
• Diagnostic Capabilities: Offers various diagnostic features for line monitoring and troubleshooting.

Benefits:

• High Integration: Reduces board space and component count by integrating multiple LIUs into a single chip.
• Flexible Configuration: Supports T1, E1, and J1 standards, providing flexibility in network design.
• Improved Signal Quality: Jitter attenuation enhances signal quality and reliability.
• Simplified Troubleshooting: Diagnostic features simplify line monitoring and troubleshooting.
• Reduced System Cost: High integration and reduced component count lower overall system cost.

Additional Details:

The XRT7295AEIW is typically packaged in a BGA (Ball Grid Array) package. It requires a 3.3V power supply. It supports various diagnostic features, including loopback testing and line monitoring. Consult the manufacturer's datasheet for detailed specifications, application notes, and PCB layout recommendations. Proper termination and impedance matching are crucial for optimal performance.
