Same model may have multiple batches, images only for reference.

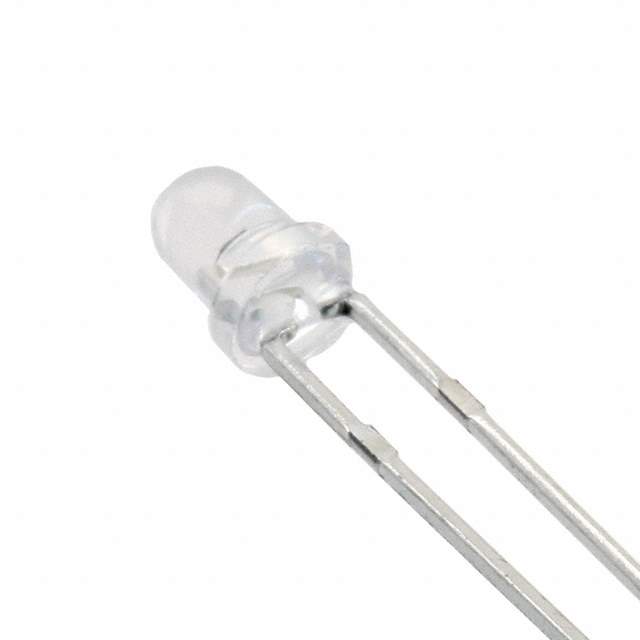

PT204-6C Real Image
Same model may have multiple batches, images only for reference.

PT204-6C

Part No PT204-6C
Manufacturer Everlight Electronics Co Ltd
Catalog Optical Sensors - Phototransistors
Description PHOTOTRANSISTOR 3MM NPN CLR RAD
Datasheet
PT204-6C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Everlight Electronics Co Ltd
Packaging Bulk
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Maximum Current Collector 20mA
Current - Dark (Id) (Max) 100μA
Wavelength 940nm
Mounting Through Hole
Orientation Top View
Temperature Range - Operating -25°C to 85°C (TA)
Dimension Radial, T-1 Lens
Win Source Part Number 098875-PT204-6C
Family Name PT204-6C
Introduction Date October 21, 2003
ECCN EAR99
Country of Origin China
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PT204-6C CAD Model

Description

The Everlight Electronics Co Ltd 098875-PT204-6C is a through-hole sensor with a radial T-1 lens manufactured by Everlight Electronics Co Ltd.

  • Viewing angle: 940nm
  • Maximum current collector: 20mA
  • VCEO maximum collector-emitter breakdown voltage: 30V
  • Category: Sensors and Transducers
  • Status: currently active
  • Popularity: high
