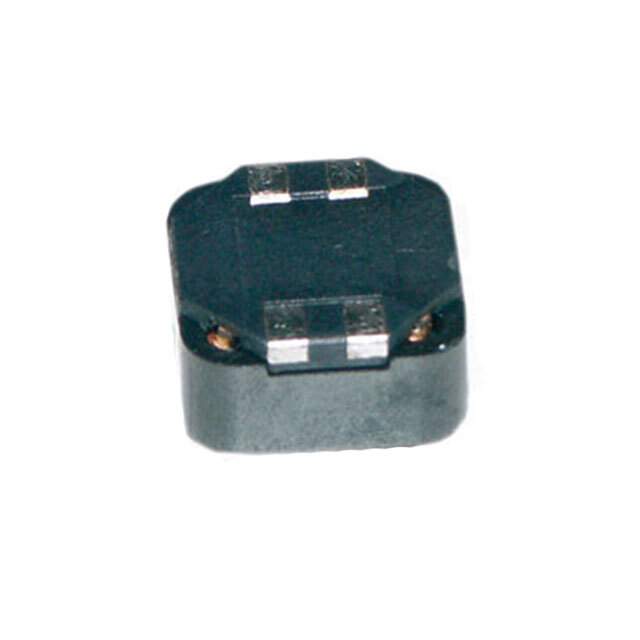

744873220

Name: 744873220
Brand: Wurth Electronics Inc
SKU: 1327554
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744873220
Manufacturer	Wurth Electronics Inc
Catalog	Arrays, Signal Transformers
Description	INDUCT ARRAY 2 COIL 22UH SMD / Shielded 2 Coil Inductor Array 88 µH Inductance - Connected in Series 22 µH Inductance - Connected in Parallel 70mOhm Max DC Resistance (DCR) - Parallel 2.79 A Nonstandard
Datasheet	744873220 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Arrays, Signal Transformers
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Number of Coils	2
Inductance - Connected In Parallel	22 µH
Inductance - Connected In Series	88 µH
Tolerance	±20%
Current Rating - Parallel	2.79 A
Current Rating - Series	1.395 A
Current Saturation - Parallel	5 A
Current Saturation - Series	2.5 A
DC Resistance (DCR) - Parallel	70mOhm Max
Shielding	Shielded
Temperature Range - Operating	-40°C ~ 125°C
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height	0.335" (8.50mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	732-2351-6,732-2351-1,732-2351-2
Standard Package	500
Win Source Part Number	1327554-744873220
Ultra Librarian 3D Model	Ultra Librarian 744873220 CAD Model

Description

The Wurth Elektronik 1327554-744873220 is a shielded inductor array that is perfect for use in signal transformers and other electronic applications.

Shielding: shielded
Application: signal transformers
Size: 0.492" L x 0.492" W (12.50mm x 12.50mm)
Mounting Type: surface mount
Tolerance: ±20%
Height: 0.335" (8.50mm)
Number of Coils: two
Inductance (Series): 88 µH
Inductance (Parallel): 22 µH
Current Rating (Series): 1.395 A
Current Rating (Parallel): 2.79 A
Current Saturation (Series): 2.5 A
Current Saturation (Parallel): 5 A
DC Resistance (Parallel): 70mOhm Max
Temperature Range: -40°C ~ 125°C
ROHS3 Compliant: true
