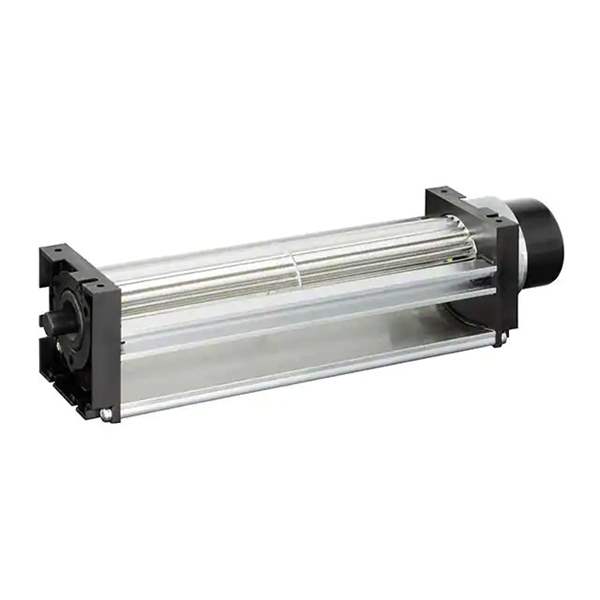

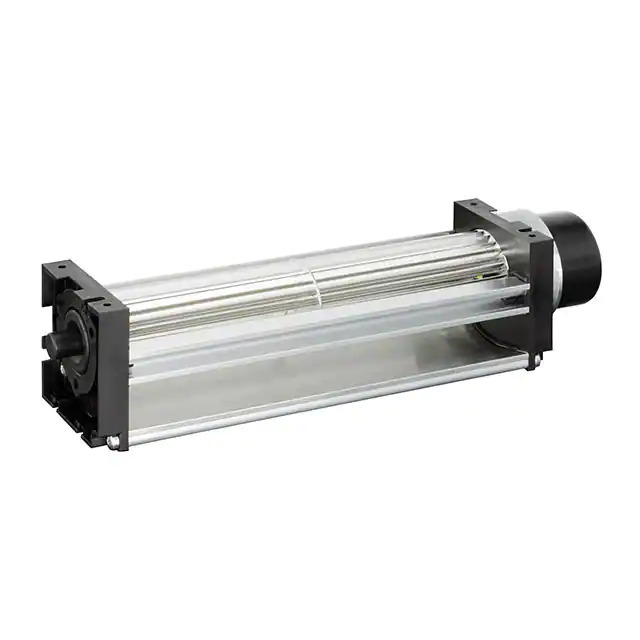

QG030-303/12 ebm-papst
Same model may have multiple batches, images only for reference.

QG030-303/12

Part No QG030-303/12
Manufacturer ebm-papst
Catalog Fans, Thermal Management
Description FAN BLOWER CF 363X47.5MM 12VDC
Datasheet
QG030-303/12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr ebm-papst Inc.
Series QG030
Package Bulk
Product Status Active
Voltage - Rated 12VDC
Size / Dimension Rectangular - 363mm L x 50mm H
Width 47.50mm
Air Flow 82.2 CFM (2.30m³/min)
Static Pressure -
Bearing Type Ball
Fan Type Blower, Cross Flow
Features -
Noise 51.0dB(A)
Power (Watts) 8.7 W
RPM -
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating -4 ~ 140°F (-20 ~ 60°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.838 lb (380.11 g)
Current Rating (Amps) -
Voltage Range 8 ~ 14VDC
Material - Frame Aluminum
Material - Blade Aluminum
Lifetime @ Temp. 30000 Hrs @ 40°C
Base Product Number QG030
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6560
Win Source Part Number 1368449-QG030-303/12
Ultra Librarian 3D Model Ultra Librarian QG030-303/12 CAD Model

Description

The QG030-303/12 is a DC brushless fan manufactured by ebm-papst Inc.

  • Series: QG030
  • Designed for: Thermal management applications
  • Voltage Range: 8 to 14VDC
  • Rated Voltage: 12VDC
  • Power Rating: 8.7W
  • Shape: Rectangular
  • Dimensions: 363mm in length and 50mm in height
  • Bearing Type: Ball bearing
  • Airflow: 82.2 CFM (2.30m³/min)
  • Noise Level: 51.0dB(A)
  • Lifetime: 30,000 hours @ 40°C
  • Approvals: CE, CSA, UL, VDE
  • Material: Aluminum
  • Leads: 2 wire leads
