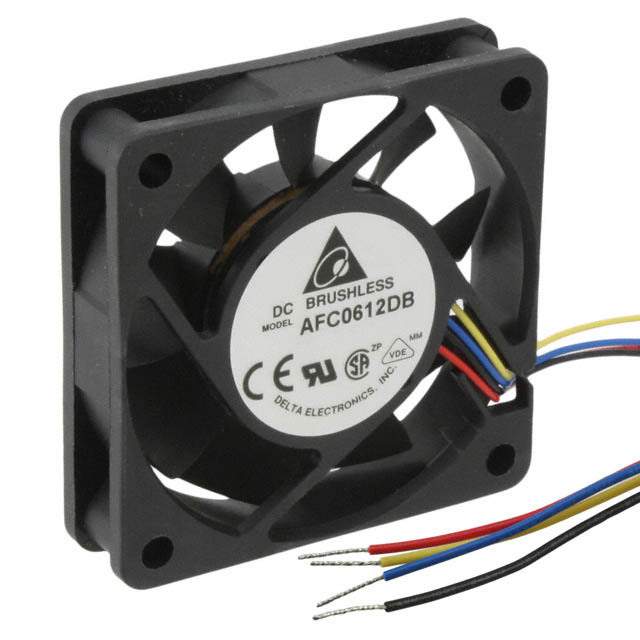

AFC0612DB-F00 Real Image
Same model may have multiple batches, images only for reference.

AFC0612DB-F00

Part No AFC0612DB-F00
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 60X15MM 12VDC WIRE / Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 29.2 CFM (0.818m³/min) 4 Wire Leads
Datasheet
AFC0612DB-F00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFC
Package Box
Voltage - Rated 12VDC
Size / Dimension Square - 60mm L x 60mm H
Width 15.00mm
Air Flow 29.2 CFM (0.818m³/min)
Static Pressure 0.517 in H2O (128.8 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Noise 47.5dB(A)
Power (Watts) 3.96 W
RPM 7200 RPM
Termination 4 Wire Leads
Temperature Range - Operating 14 ~ 140°F (-10 ~ 60°C)
Approval Agency CE, TUV, UL
Weight 0.098 lb (44.45 g)
Current Rating (Amps) 0.330A
Voltage Range 8 ~ 13.2VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFC0612
Standard Package 210
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1338764-AFC0612DB-F00
Ultra Librarian 3D Model Ultra Librarian AFC0612DB-F00 CAD Model

Description

The Delta Electronics AFC0612DB-F00 is a DC brushless fan that features locked rotor protection, PWM control, and speed sensor (Tach). It has a voltage range of 8 ~ 13.2VDC and is rated @ 12VDC.

  • Features: Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
  • Voltage Range: 8 ~ 13.2VDC
  • Voltage Rating: 12VDC
  • Noise Level: 47.5dB(A)
  • Air Flow: 29.2 CFM (0.818m³/min)
  • Lifetime: 70000 Hrs @ 40°C
  • Material: Plastic
  • Static Pressure: 0.517 in H2O (128.8 Pa)
  • Bearing Type: Ball
