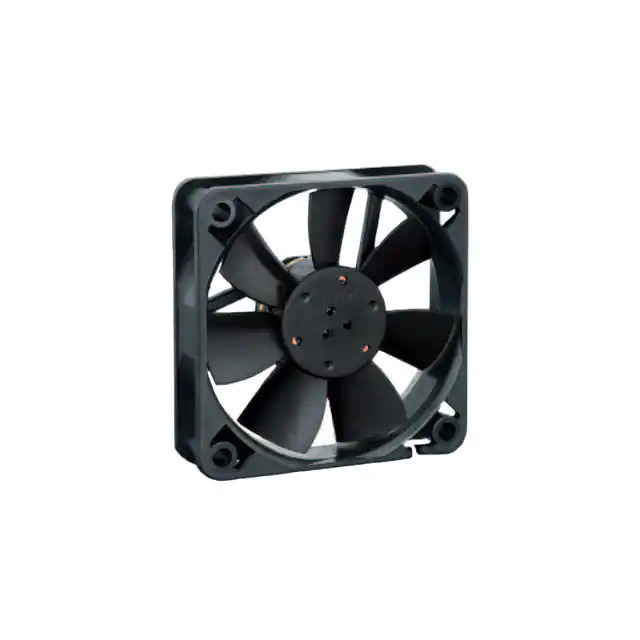

614F ebm-papst
Same model may have multiple batches, images only for reference.

614F

Part No 614F
Manufacturer ebm-papst
Catalog Fans, Thermal Management
Description FAN AXIAL 60X15MM 24VDC WIRE
Datasheet
614F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr ebm-papst Inc.
Series 600F
Package Box
Product Status Active
Voltage - Rated 24VDC
Size / Dimension Square - 60mm L x 60mm H
Width 15.00mm
Air Flow 17.1 CFM (0.479m³/min)
Static Pressure -
Bearing Type Sintec
Fan Type Tubeaxial
Features -
Noise 27.0dB(A)
Power (Watts) 1.1 W
RPM 3900 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.066 lb (29.94 g)
Current Rating (Amps) -
Voltage Range 21.6 ~ 26.4VDC
Material - Frame Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Blade Polyamide (PA), Nylon, Fiberglass Reinforced
Lifetime @ Temp. 50000 Hrs @ 20°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368412-614F
Ultra Librarian 3D Model Ultra Librarian 614F CAD Model

Description

The 1368412-614F is a DC brushless fan from ebm-papst Inc..

  • Series: 600F series
  • Shape: square
  • Dimensions: 60mm L x 60mm H
  • Rated Voltage: 24VDC
  • Power Rating: 1.1W
  • Lifetime: 50000 hours @ 20°C
  • Air Flow: 17.1 CFM
  • Speed: 3900 RPM
  • Noise Level: 27.0dB(A)
  • Bearing Type: Sintec
  • Frame: Polybutylene Terephthalate (PBT) and fiberglass reinforced material
  • Blades: Polyamide (PA), Nylon, and fiberglass reinforced material
  • Approvals: CE, CSA, UL, and VDE
