Same model may have multiple batches, images only for reference.

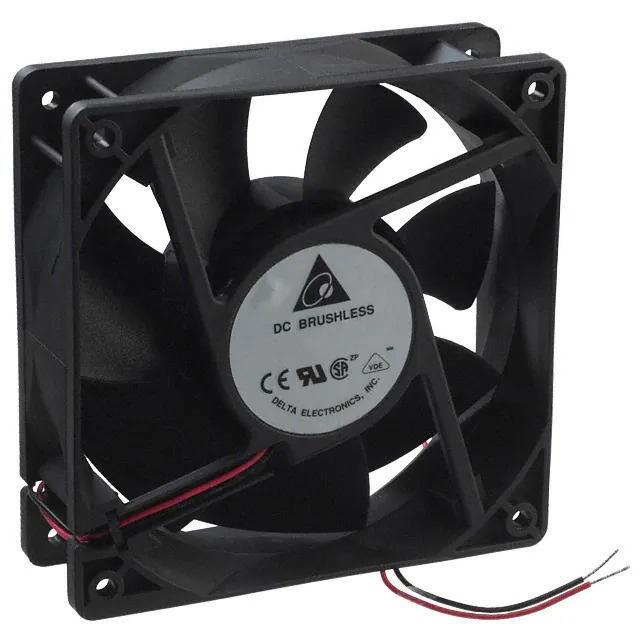

AFB1212SHE Delta Electronics
Same model may have multiple batches, images only for reference.

AFB1212SHE

Part No AFB1212SHE
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 120X38MM 12VDC WIRE
Datasheet
AFB1212SHE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Tray
Product Status Active
Voltage - Rated 12VDC
Size / Dimension Square - 120mm L x 120mm H
Width 38.00mm
Air Flow 151.9 CFM (4.25m³/min)
Static Pressure 0.571 in H2O (142.2 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 53.0dB(A)
Power (Watts) 12.6 W
RPM 3700 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 140°F (-10 ~ 60°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.564 lb (255.83 g)
Current Rating (Amps) 1.05A
Voltage Range 4 ~ 13.2VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB1212
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368407-AFB1212SHE
Ultra Librarian 3D Model Ultra Librarian AFB1212SHE CAD Model

Description

The 1368407-AFB1212SHE is a 120mm DC brushless fan manufactured by Delta Electronics.

  • Series: AFB
  • Package: Tray
  • Operating Temperature: 14°F to 140°F (-10°C to 60°C)
  • Rated Voltage: 12VDC
  • Current Rating: 1.05A
  • Size: 120mm L x 120mm H
  • Air Flow (Max): 151.9 CFM (4.25m³/min)
  • Static Pressure: 0.571 in H2O (142.2 Pa)
  • Noise Level: 53.0dB(A)
  • Lifetime: 70000 hours @ 40°C
  • Locked Rotor Protection: Yes
