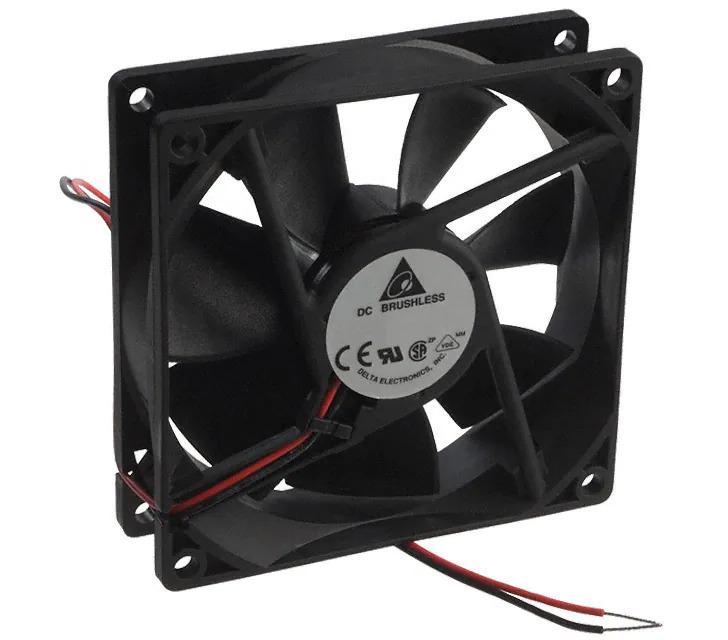

AFB0924VH Delta Electronics
Same model may have multiple batches, images only for reference.

AFB0924VH

Part No AFB0924VH
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 92X25.4MM 24VDC WIRE
Datasheet
AFB0924VH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Box
Product Status Active
Voltage - Rated 24VDC
Size / Dimension Square - 92mm L x 92mm H
Width 25.40mm
Air Flow 67.8 CFM (1.90m³/min)
Static Pressure 0.302 in H2O (75.2 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 45.0dB(A)
Power (Watts) 5.28 W
RPM 3800 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.218 lb (98.88 g)
Current Rating (Amps) 0.220A
Voltage Range 14 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB0924
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368399-AFB0924VH
Ultra Librarian 3D Model Ultra Librarian AFB0924VH CAD Model

Description

The DC Brushless Fan from Delta Electronics is a high-quality cooling solution for electronic devices.

  • Series: AFB
  • Voltage: 24VDC
  • Current Rating: 0.220A
  • Power Rating: 5.28W
  • Speed: 3800 RPM
  • Lifetime: 70000 hours @ 40°C
  • Protection: Locked Rotor Protection
  • Shape: Square
  • Dimensions: 92mm x 92mm

You May Also Be Interested in

AFC0612DB-F00 Real Image
AFC0612DB-F00
Delta Electronics
FAN AXIAL 60X15MM 12VDC WIRE / Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 29.2 CFM (0.818m³/min) 4 Wire Leads
Need more? Email Us
109P0412G302 Real Image
109P0412G302
Sanyo Denki America Inc.
FAN AXIAL 40X28MM 12VDC WIRE
Need more? Email Us
9WL1424P5G001 Real Image
9WL1424P5G001
Sanyo Denki America Inc.
FAN AXIAL 140X51MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 140mm L x 140mm H Ball 318.0 CFM (8.90m³/min) 4 Wire Leads
Need more? Email Us
9G1224H4D01 Real Image
9G1224H4D01
Sanyo Denki America Inc.
FAN AXIAL 119X25MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 119mm L x 119mm H Ball 88.0 CFM (2.46m³/min) 3 Wire Leads
Lowest to $29.8892

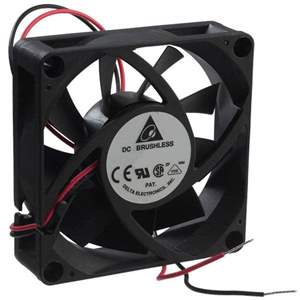

AFB0712VHB Real Image
