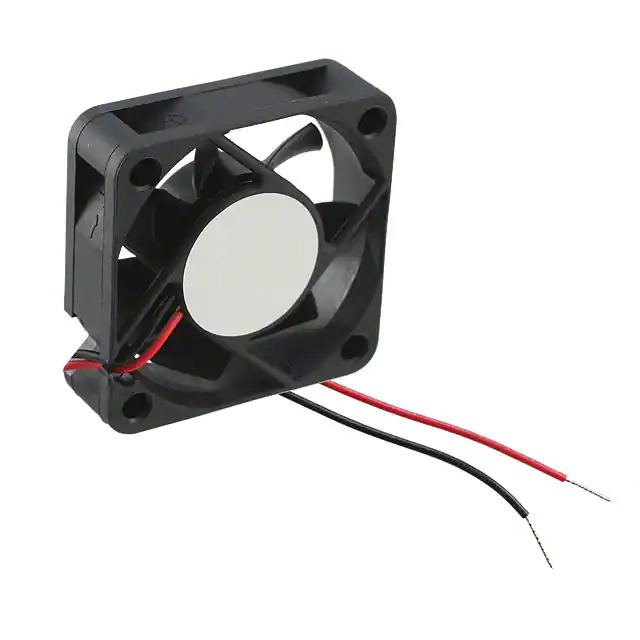

AFB0524HHB Delta Electronics
Same model may have multiple batches, images only for reference.

AFB0524HHB

Part No AFB0524HHB
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 50X15MM 24VDC WIRE
Datasheet
AFB0524HHB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Bulk
Product Status Active
Voltage - Rated 24VDC
Size / Dimension Square - 50mm L x 50mm H
Width 15.00mm
Air Flow 16.2 CFM (0.454m³/min)
Static Pressure 0.315 in H2O (78.5 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 36.0dB(A)
Power (Watts) 1.92 W
RPM 6400 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.071 lb (32.21 g)
Current Rating (Amps) 0.080A
Voltage Range 14 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB0524
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368386-AFB0524HHB
Ultra Librarian 3D Model Ultra Librarian AFB0524HHB CAD Model

Description

The 1368386-AFB0524HHB is a 24VDC brushless fan from Delta Electronics.

  • Series: AFB
  • Size / Dimension: Square - 50mm L x 50mm H
  • Features: Locked Rotor Protection
  • Current Rating: 0.080A
  • Power (Watts): 1.92W
  • Bearing Type: Ball
  • Life Expectancy @ Temp.: 70000 Hours @ 40°C
  • Operating Temperature: 14°F ~ 158°F (-10°C ~ 70°C)
  • Air Flow: 16.2 CFM (0.454m³/min)
  • Static Pressure: 0.315 in H2O (78.5 Pa)
  • Noise: 36.0dB(A)
  • RPM: 6400 RPM
  • Material - Frame: Plastic
  • Material - Blade: Plastic
  • Approvals: CE, UL, VDE

You May Also Be Interested in

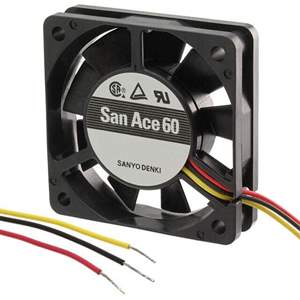

109P0605M7D01 Real Image
109P0605M7D01
Sanyo Denki America Inc.
FAN AXIAL 60X15MM BALL 5VDC WIRE / Fan Tubeaxial 5VDC Square - 60mm L x 60mm H Ball 10.6 CFM (0.297m³/min) 3 Wire Leads
Need more? Email Us
AFC0612DB-F00 Real Image
AFC0612DB-F00
Delta Electronics
FAN AXIAL 60X15MM 12VDC WIRE / Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 29.2 CFM (0.818m³/min) 4 Wire Leads
Need more? Email Us
9WL1424P5G001 Real Image
9WL1424P5G001
Sanyo Denki America Inc.
FAN AXIAL 140X51MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 140mm L x 140mm H Ball 318.0 CFM (8.90m³/min) 4 Wire Leads
Need more? Email Us
9WL0924P4J001 Real Image
9WL0924P4J001
Sanyo Denki America Inc.
FAN AXIAL 92X25MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 77.7 CFM (2.18m³/min) 4 Wire Leads
Need more? Email Us
109E5724H501 Real Image
109E5724H501
Sanyo Denki America Inc.
FAN AXIAL 172X51MM 24VDC WIRE / Fan Tubeaxial 24VDC Rectangular/Rounded - 172mm L x 150mm H Ball 226.0 CFM (6.33m³/min) 3 Wire Leads
Need more? Email Us
3110SB-05W-B20-E00 Real Image
3110SB-05W-B20-E00
NMB Technologies Corporation
FAN AXIAL 80X25MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 26.1 CFM (0.731m³/min) 2 Wire Leads
Need more? Email Us

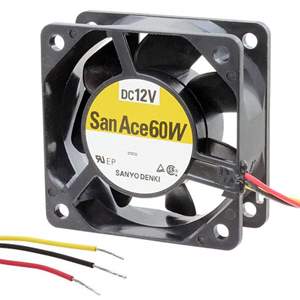

9WPA0624P4G2011 Real Image
